Linshang LS225 + F500 Plating Thickness Gauge

SKU: LIN-LS225-F500
Rs. 69,500.00 MRP Rs. 75,000.00 Save Rs. 5,500.00 (8% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece
Currently out of stock

Enter your email and we will notify you when this product is available.

The Linshang LS225+F500 is a professional plating thickness gauge designed for highly accurate measurement of electroplated coatings on ferrous substrates. Featuring an ultra-small F500 digital probe, the instrument is ideal for measuring zinc, chromium, nickel, tin, copper and other non-magnetic coatings on iron and steel surfaces, especially on small components such as screws, bolts, fasteners, connectors and precision hardware. It offers exceptional accuracy for ultra-thin coatings below 10μm and is widely used in plating inspection, quality control and manufacturing environments.

The plating thickness gauge has ultra-high measurement accuracy and repeatability. It can be used to measure the thickness of ultra-thin coatings below 10μm. The LS225+F500 plating thickness gauge is widely used in metal processing industry, hardware and other industries and is particularly suitable for testing small-sized materials with a minimum measurement area diameter of only 7 mm

Product information

Everything you need to know

Technical Specifications

Model: LS225+F500

Measuring Principle: Magnetic Induction

Measurement Range: 0 – 500 μm

Resolution: 0.1 μm

Accuracy: ±(2%H + 0.3 μm)

Substrate: Ferrous Metals (Iron & Steel)

Minimum Measuring Area: Ø 7 mm

Units: μm / mil

Display: LCD Screen

Power Supply: 4 × AAA Batteries

Operating Temperature: 0°C to 50°C

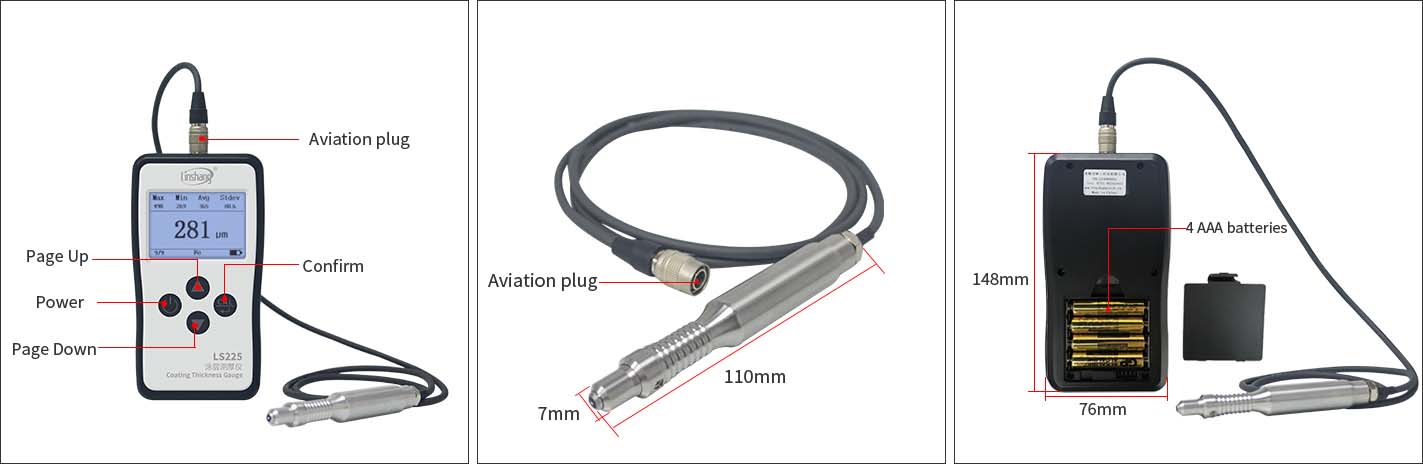

Dimensions: 148 × 76 × 26 mm

Weight: 194 g









Warranty
1 Year

Recommended Uses

Measuring zinc, nickel, chromium, tin, copper and other electroplated coatings on steel surfaces

• Quality inspection of screws, bolts, nuts and fasteners
• Coating thickness testing of automotive components
• Inspection of plated connectors, terminals and electronic parts
• Quality control in electroplating and surface treatment industries
• Production line inspection of metal hardware components
• Verification of coating thickness before shipment
• Laboratory and R&D coating analysis

• Maintenance and audit of plating processes
• Industrial coating thickness measurement on small and irregular workpieces
