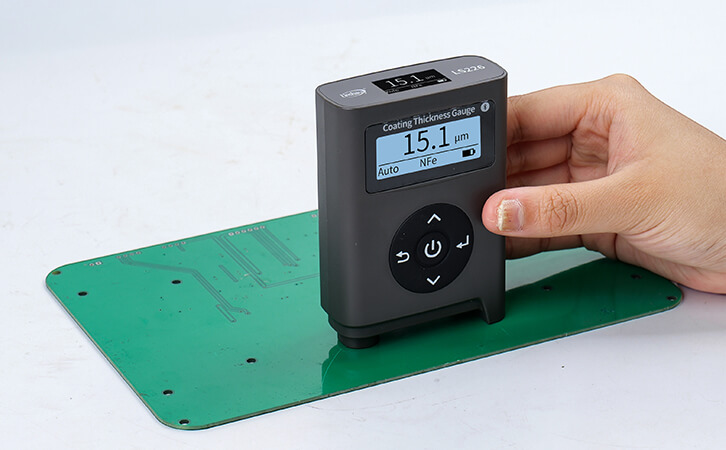

Linshang LS226 High Precision Coating Thickness Gauge

Applicable to flat plate coating thickness measurement

Gravity-based measurement, stable positioning
Dual screen design, easy reading
1-5 point calibration, suitable for complex applications

Measures coating thickness on both steel and aluminium surfaces with automatic substrate recognition.
High accuracy up to ±(2%H + 1μm) for reliable inspection and quality control.
Fast 0.1-second measurement speed improves productivity during inspections.
Dual technology (Fe/NFe) supports paint, powder coating, anodizing, galvanizing, and plating applications.
Continuous scanning mode allows quick inspection of large surfaces and identification of thickness variations.
Non-destructive testing (NDT) measures coatings without damaging the surface.
Compact, lightweight, and portable for field inspections and on-site testing.
μm and mil unit conversion for international and industrial standards.
Ideal for automotive, manufacturing, fabrication, powder coating, and quality assurance professionals.
Automatic substrate detection eliminates manual switching and reduces operator errors.

Packing List

Coating Thickness Gauge 1 Set
Fe zero-adjustment plate 1 pcs
NFe zero-adjustment plate 1 pcs
Standard film 5 pcs
User manual 1 pcs

Rs. 48,500.00 /each Save Rs. 3500 (8% Off)

Rs. 45,000.00 /each (Incl GST-18%)

Quantity

Brand
Authorization
Total Brand Orders	2

Dispatched (in Days): Same day dispatch

Minimum Order Quantity: 1 pcs

Country of Origin: N/A

Technical Specifications

Probe tip Cemented carbide

Measuring principle Fe: Magnetic induction

NFe: Eddy current

Probe type Integrated probe

Measuring range 0.0-2000μm

Resolution 0.1μm:(0μm - 99.9μm)

1μm:(100μm - 2000μm)

Accuracy 0-1000μm:≤±(2%H+1μm), H is the standard value

1000-2000μm:≤±3%H, H is the standard value

Unit μm / mil

Measuring interval 0.3s

Minimum measuring area Ø = 15mm

Minimum substrate thickness Fe:0.2mm

NFe:0.05mm

Display 128×48 dot matrix LCD

Power supply 2pcs of 1.5V AA alkaline battery

Range of operation temperature 0℃-50℃

Storage temperature range -20℃-60℃

Host size 90*65*28 mm

Weight(with battery) 123g

Supply Voltage DC3V

Warranty: 1 Year

Paint Thickness Inspection
Powder Coating Measurement
Galvanizing Thickness Testing
Anodized Layer Measurement
Chrome Plating Inspection
Manufacturing Quality Control
Metal Fabrication
Aerospace Components
Shipbuilding
Industrial Maintenance
Commodity Inspection
