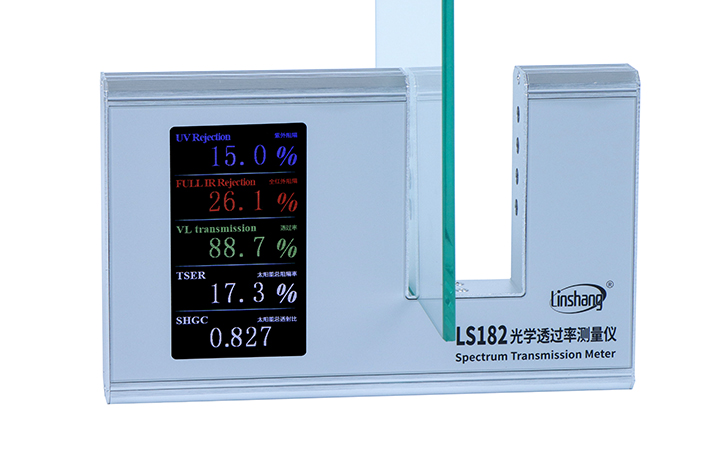

Linshang LS182 Spectrum Transmission Meter | TSER, SHGC, UV, IR & Visible Light Transmission Tester

The Linshang LS182 Spectrum Transmission Meter is a professional instrument designed for comprehensive analysis of solar films, architectural glass, window tints, and heat insulation materials. Using advanced spectral measurement technology, the LS182 simultaneously measures UV rejection, visible light transmission, infrared rejection, TSER, and SHGC values, making it ideal for automotive, construction, and quality inspection applications.

Simultaneously measures 7 optical parameters
Tests UV, Visible Light and IR transmission performance
Calculates TSER (Total Solar Energy Rejected)
Measures SHGC (Solar Heat Gain Coefficient)
Parallel optical path design for thick materials
High measurement accuracy with automatic calibration
Large color LCD for clear readings
USB Type-C powered design
Fast measurement response
Suitable for solar films, coated glass and window tint analysis

Rs. 40,500.00 /each Save Rs. 1500 (4% Off)

Rs. 39,000.00 /each (Incl GST-18%)

Quantity

Brand
Authorization
Total Brand Orders	2

Dispatched (in Days): Same Day Dispatch

Minimum Order Quantity: 1 pcs

Country of Origin: N/A

2 In stock Need more?

Warehouse location - Delhi, India.
Delivery - 2-6 Business Days

Technical Specifications

UV Measurement 365nm

Visible Light Range 380–760nm

Infrared Wavelength 940nm, 1400nm, Full IR

Resolution 0.1%

Accuracy ±2%

TSER Range 0–100%

SHGC Range 0.000–1.000

Test Slot Size 47 × 91 mm

Power Supply DC 5V Type-C

Power Consumption 2W

Current Consumption 0.4A

Dimensions 216 × 134 × 29 mm

Weight Approx. 590g

Warranty: 1 Year

Uses

Automotive window tint testing
Solar film quality inspection
Architectural glass verification
Heat insulation material testing
Manufacturing quality control
Construction and curtain wall applications
Window film dealer demonstrations
Research and laboratory testing
