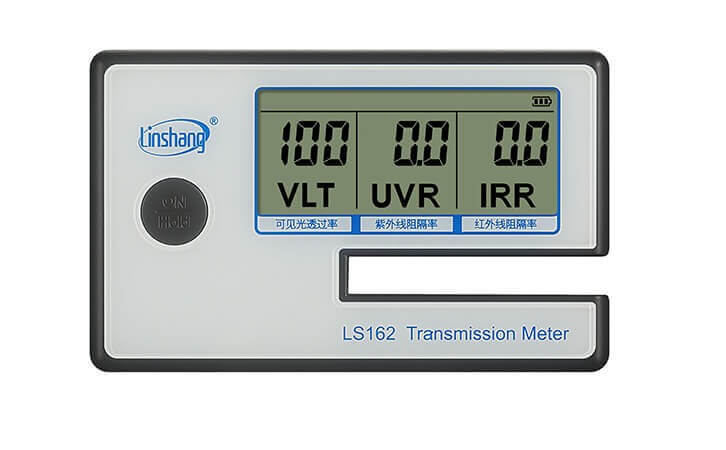

Linshang LS162 Window Tint Transmission Meter | UV, IR & Visible Light Transmittance Tester

The Linshang LS162 Transmission Meter is a compact and portable testing instrument designed for rapid measurement of visible light transmittance (VLT), UV rejection, and IR rejection in window films, automotive glass, solar films, laminated glass, and transparent materials. Featuring instant measurement, automatic calibration, and data hold functionality, it delivers fast and reliable testing for quality inspection and installation applications

Measures three parameters simultaneously: VLT, UV rejection, and IR rejection
Visible light measurement range: 380–760nm (CIE photopic response compliant)
UV peak wavelength: 365nm
IR peak wavelength: 940nm
Real-time dynamic self-calibration for stable and accurate readings
Fast instant measurement with automatic display
HOLD function to freeze measured data
Compact handheld design for field use
Supports testing material thickness up to 8mm
Auto power-off for battery conservation
Ideal for automotive tint films and architectural glass testing

Rs. 12,000.00 /each Save Rs. 2005 (17% Off)

Rs. 9,995.00 /each (Incl GST-18%)

Quantity

Brand
Authorization
Total Brand Orders	2

Dispatched (in Days): Same Day Dispatch

Minimum Order Quantity: 1 pcs

Country of Origin: N/A

1 In stock Need more?

Warehouse location - Delhi, India.
Delivery - 2-6 Business Days

Technical Specifications

Visible Light Range 380–760nm

UV Peak Wavelength 365nm

IR Peak Wavelength 940nm

Resolution 0.1%

Accuracy ±2%

Sample Thickness <8mm

Display Segment LCD

Power Supply 4 × AAA Batteries

Dimensions 120 × 75 × 25 mm

Weight Approx. 165g

Warranty: 1 Year

Uses

Automotive window tint inspection
Solar film testing
Building glass inspection
Laminated glass testing
Window film retail & installation centers
Quality control and production environments
