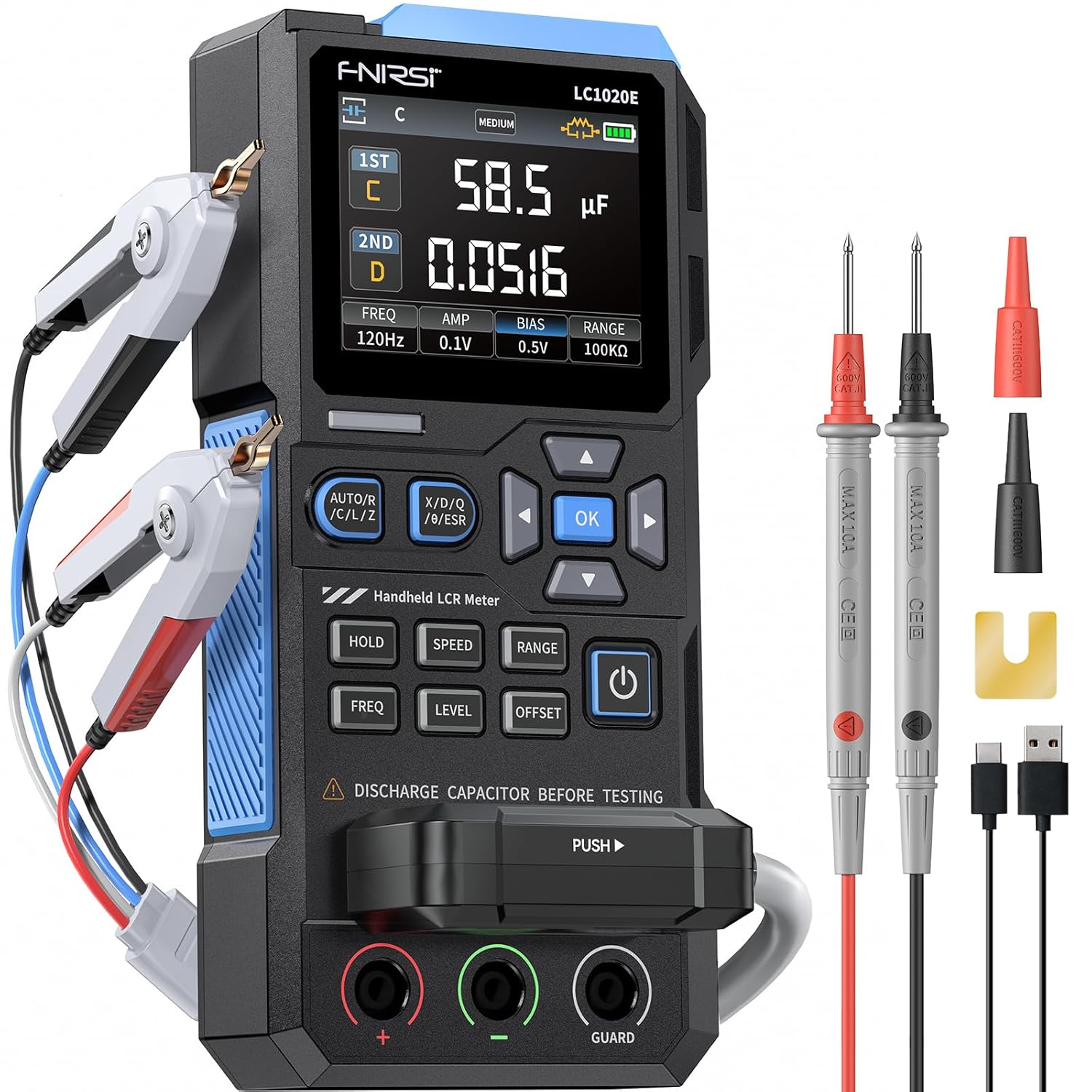

FNIRSI LC1020E High Precision Handheld LCR Meter | 100kHz ESR Tester with Kelvin Clips

The FNIRSI LC1020E is a high-precision handheld LCR meter designed for engineers, repair professionals, R&D labs, and electronics enthusiasts. Featuring up to 100kHz test frequency, automatic component identification, ESR measurement, and 4-wire Kelvin testing, it delivers reliable and accurate measurements for inductors, capacitors, and resistors in both laboratory and field environments.

High precision LCR measurement with up to 0.3% basic accuracy
Supports automatic identification of R/L/C components
Five selectable test frequencies: 100Hz / 120Hz / 1kHz / 10kHz / 100kHz
Adjustable test levels: 0.1V / 0.3V / 0.6V
Measures ESR, Q factor, Dissipation (D), Reactance (X), and phase angle (θ)
4-wire Kelvin measurement support for higher accuracy
Pass/Fail sorting mode for batch testing and QC applications
Open and short circuit calibration functions
2.8-inch TFT color display with dual-parameter viewing
Built-in 3000mAh rechargeable battery with USB Type-C charging

Includes

Kelvin Test Clip
Red & Black Test Leads
Shorting Calibration Plate
USB Type-C Charging Cable
User Manual

Technical Documents - 1

Rs. 14,000.00 /each Save Rs. 5005 (36% Off)

Rs. 8,995.00 /each (Incl GST-18%)

Quantity

Brand
Authorization
Total Brand Orders	480

Dispatched (in Days): Same Day Dispatch

Minimum Order Quantity: 1 pcs

Country of Origin: N/A

10 In stock Need more?

Warehouse location - Delhi, India.
Delivery - 2-6 Business Days

Technical Specifications

Display 2.8" TFT LCD

Test Frequencies 100Hz, 120Hz, 1kHz, 10kHz, 100kHz

Basic Accuracy ±0.3%

Main Parameters Auto / R / C / L / Z

Secondary Parameters X / D / Q / θ / ESR

Resistance Range 10mΩ–10MΩ

Capacitance Range 0–100mF

Inductance Range 0–100H

Test Levels 0.1V / 0.3V / 0.6V

Internal Bias 0V / 0.5V

Terminal Type 3-Terminal + 5-Terminal Kelvin

Battery 3000mAh Rechargeable

Charging Port USB Type-C

Calibration Open & Short Calibration

Output Impedance 100Ω

Warranty: 6 months

Uses

Component testing and verification
Repair and diagnostics
Production line quality control
Educational electronics labs
Research & development work
Capacitor ESR testing
Inductor and resistor analysis
