ATTEN Authorized brand

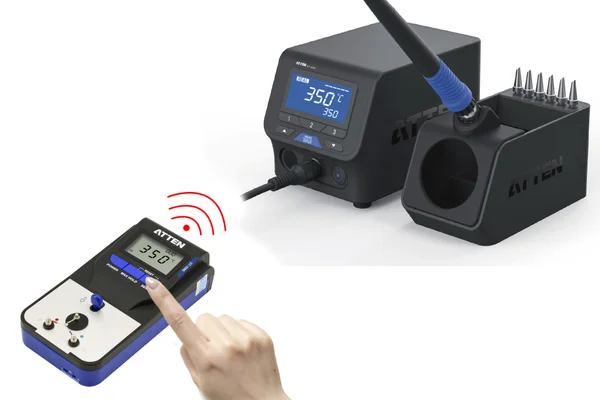

ATTEN ST-1090 High Precision Digital Thermometer Temperature Tester for Soldering Iron Tips + 10 Pieces Lead-Free Sensors

SKU: ST1090
Rs. 5,995.00 MRP Rs. 7,500.00 Save Rs. 1,505.00 (21% off) Inclusive of GST-18%
In Stock (2 available) Delivery 2-6 days MOQ 1 piece
Quantity to add

Features

  1. The sensor is made of very thin (φ0.2mm) metal wire. It should be used with care and not bend or break.
  2. The housing of the thermometer is made of plastic. Do not touch the tip of the soldering iron.
  3. The sensor is a consumable item (life of about 50-60 times), long time use, the alloy layer is worn out, the measurement will be inaccurate, and need to be replaced New sensor.
  4. Alcohol can be used to clean the flux attached to the terminal. Do not use thinner or volatile oil.
  5. If the display shows -1, it means that the temperature sensor has been scrapped (or no sensor is installed) and a new one needs to be replaced.
  6. The 191-212 temperature sensor is only suitable for measuring the temperature below 500℃, such as measuring higher temperature, please use the appropriate Temperature probe.
  7. Do not blow the hot air gun directly to the ST-1090 for measurement. Blowing directly will damage the ST-1090 host

Package Includes

  • Host ST-1090:1
  • K-type thermo couple test wire:1
  • Sensor : 10
  • MINI USB data line 1
Product information

Everything you need to know

Technical Specifications

Temperature range      0-800℃/32-1500℉

Resolution        1℃/1℉

Accuracy Temperature              ±5℃/±9℉

Sensing wire    K-type thermocouple

Display                 LCD

Power  9V DC High-performance carbon battery

Operating environment             0℃~40℃/32℉~104℉

Size        75x143.5x41.5mm

Weight 185g

Warranty
2 Year

Recommended Uses

Industrial use- Recalibration of Soldering Station
