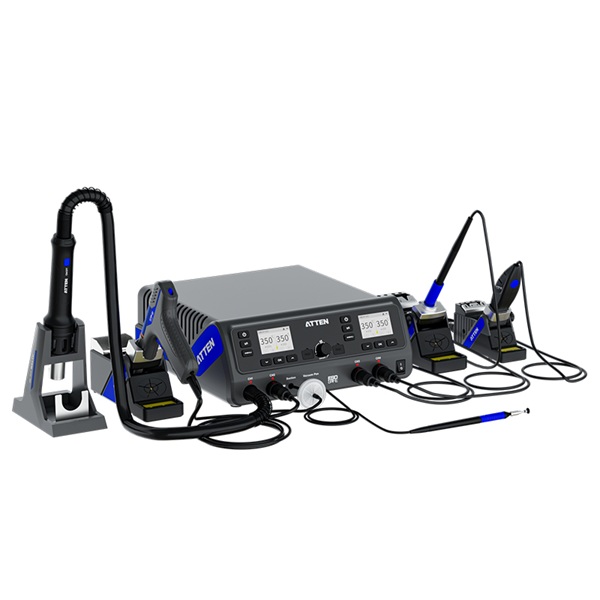

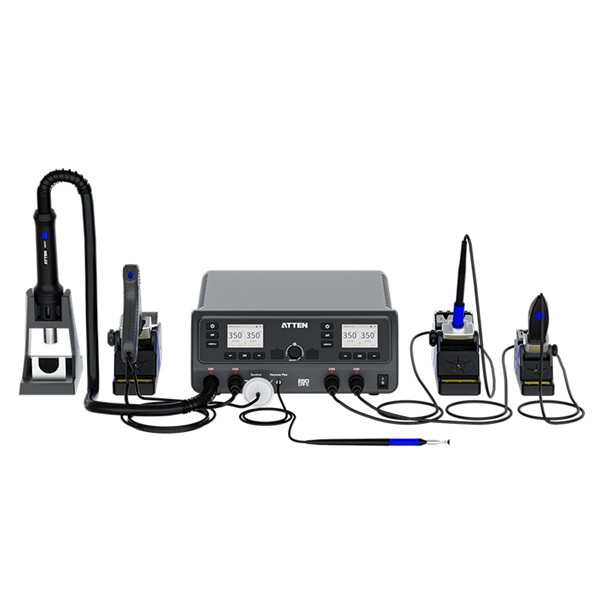

Model MS-1600
Product Type 4-in-1 Intelligent Rework Station
Functions Soldering Station, Desoldering Station, Hot Air Rework Station, Electric Tweezers
Input Voltage AC 100V/110V/120V/220V/230V/240V, 50/60Hz
Total Power 900W
Control System MCU Intelligent Digital Control
Display Large LCD Digital Display
Channel Configuration 3 Independent Working Channels
Tool Recognition Automatic Tool Identification
Temperature Lock Yes
Temperature Calibration Yes
Standby Function Yes
Sleep Function Yes
Alarm Function Yes
Communication Interface USB/PC Communication Support
Vacuum Pickup System Built-in Vacuum Generator
ESD Safe Yes
Operating Temperature 0°C – 40°C
Soldering Station Specifications
Parameter Specification
Soldering Handle GT-Y151
Output Voltage 24V DC
Power Rating 150W
Temperature Range 150°C – 500°C
Temperature Stability ±2°C
Heating Element Integrated High-Efficiency Heater
Sensor Type Thermocouple
Sleep Timer 1 – 120 Minutes
Desoldering Station Specifications
Parameter Specification
Desoldering Gun GT-X151
Output Voltage 24V DC
Power Rating 150W Heater + Vacuum Pump
Temperature Range 300°C – 500°C
Temperature Stability ±2°C
Vacuum System Built-in High-Suction Pump
Sleep Timer 1 – 120 Minutes
Hot Air Rework Specifications
Parameter Specification
Hot Air Handle SP-202D
Heater Power 550W
Air Pump Power 25W
Temperature Range 150°C – 500°C
Maximum Airflow 23 L/min
Temperature Stability ±5°C
Noise Level <52 dB(A)
Cooling System Intelligent Auto-Cooling
Electric Tweezers Specifications
Parameter Specification
Tweezer Model GT-N080
Output Voltage 12V DC
Power Rating 100W
Temperature Range 150°C – 500°C
Temperature Stability ±2°C
Heating Element Dual Heating System
Physical Specifications
Parameter Specification
Dimensions Approx. 310 × 251 × 119 mm
Weight Approx. 14 kg
Ground Resistance < 2 Ω
Tip-to-Ground Voltage < 2 mV
Warranty:
2 Year on Controller
SMD component soldering and removal, BGA rework and chip replacement, Mobile phone motherboard repair, Laptop and electronics repair, PCB prototyping and rework, Electronics manufacturing lines, R&D laboratories and repair workshops
