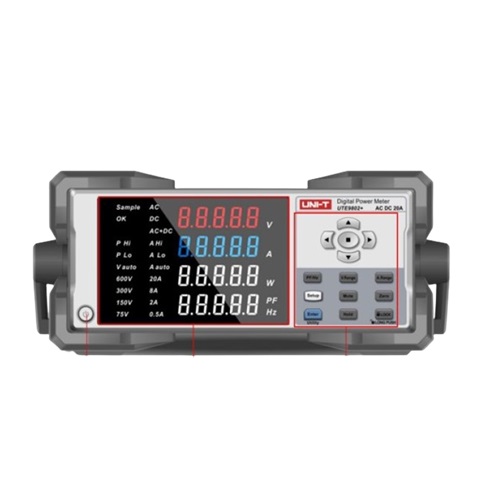

UNI-T UTE9806+ Digital Power Analyzer

UTE9800+ Series is an economical portable intelligent electric parameter measuring instrument. Multifunctional measuring instrument integrating voltage, current, power, power factor and frequency. High cost performance, widely used in production, measure, quality and scientific research and other fields.

• Voltage Range:0.5V~600V
• Current Range: 0.05mA~10.0A
• Frequency Range, 40Hz~400Hz
• Accuracy: ± (0.4% reading + 0.1 range + 1 digit)
• Measurement Mode: AC，DC，AC+DC
• Connectivity: RS-232/RS-485
• VA broken code screen display, reading intuitive, it adopts high speed A/D transformer and 32-bit MCU operation.
• Measurement parameter of each window can be switched
• Multi-window simultaneous display of voltage, current, power, power factor/frequency
• Voltage, current range can switch to auto range or manual range.
• Average function can make the reading more stable and it suitable for measuring the load or power with large variations.
• Data upgrade period can be set. User can select a faster upgrade period according to the test needs, so as to improve the test efficiency.
• Communication interface supports RS-232 and RS-485. Communication protocol supports SCPI and Modbus for communicating with computer and PLC.
• It can freely set the upper and lower limit of current and power, the digital power meter will automatic judge whether the test value is exceed. Sound and light alarm indication, it is convenient for batch detection to improve the measurement efficiency.
• UTE9806+ is also supports set the voltage, apparent power and set and detect the upper and lower limift of power factor.

± (0.4% reading + 0.1 range + 1 digit)

AC

Quantity

1

  Add to Cart

  Buy Now

Brand
Authorization
In-house Service center
Total Brand Orders	2394

Dispatched (in Days): Same Day Dispatch

Minimum Order Quantity: 1 pcs

Country of Origin: N/A

1 In stock Need more?

• Warehouse location - Delhi, India.
• Delivery - 2-6 Business Days
