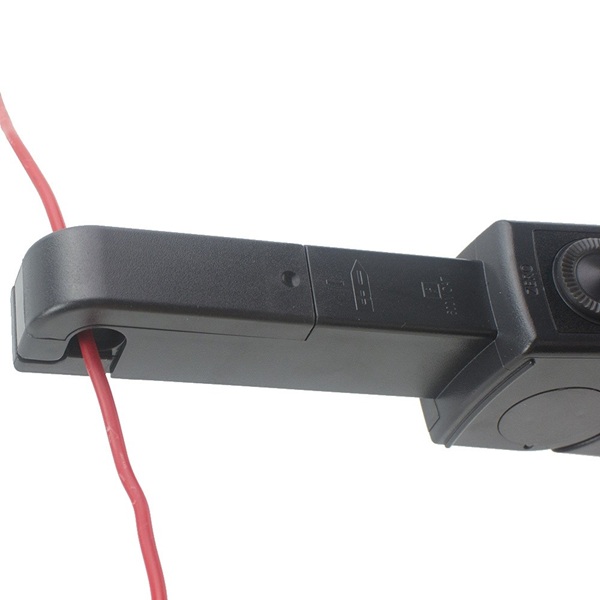

OWON OC5010A AC/DC Current Probe

The Owon OC5010A AC/DC current probe can measure both DC and AC currents with a wide measuring range of 50mA-10A. The probe has a BNC connector and can be applied to any test instrument with a BNC connector. The bandwidth of the current probe is 100kHz and it has a jaw size of 11.8mm. Also, the OC5010A has an automatic and manual zero adjustmant.

Bandwidth coverage: 500 kHz
Maximum measurable 50mA-10A peak
Measurement accuracy: up to ±3%, suitable for most testing needs
Dual-range design: 0.01 V/A and 0.1 V/A
One-click zeroing for easy use, eliminates tedious zeroing adjustments
Dual power modes: adapter and battery, suitable for indoor and outdoor use
Low-battery indicator, overload indicator, and audible alert, plus additional protective features

Rs. 49,995.00 /each Save Rs. 7495 (15% Off)

Rs. 42,500.00 /each (Incl GST-18%)

Quantity

Brand
Authorization
In-house Service center
Total Brand Orders	1220

Dispatched (in Days): Same day dispatch

Minimum Order Quantity: 1 pcs

Country of Origin: N/A

1 In stock Need more?

Warehouse location - Delhi, India.
Delivery - 2-6 Business Days

Technical Specifications

Model	OC5010A
Bandwidth（-3dB）	500kHz
Rise time	≤700ns
Gear level	L
Current Ranges	50mA~10A peak
Range sensitivity	0.1V/A
DC accuracy,typical	3%±50mA
DC accuracy,typical	3%±50mA
Phase shift	DC～65Hz：<1.5°
Working voltage RMS	CATⅠ 600V CAT Ⅱ 600V CAT Ⅲ 300V
Common mode voltage RMS	CATⅠ 600V CAT Ⅱ 600V CAT Ⅲ 300V
Power adapters	Power adapters: DC12V/1A ; alkaline batteries: 9V
Low battery indicator function	When the battery voltage <6.5V, the battery indicator is red.
Overload indication function	Measured current exceeds range, buzzer sounds
Current clamp size- （LWH）	Approximately 2303370mm
Conductor Size	Calibre approximate 12mm
Length- coaxial cable	Approximately 1.5m
Weights	Approximately 300g(Battery not included)
Voltage and current rating table
Rating	Maximum working current(A)
Rating	H (0.01V/A)
DC	100 A
DC+AC peak	100 A
AC peak	100 A
AC peak-peak	200 A
RMS CAT III	70.7 A
RMS CAT II	70.7 A
RMS CAT I	70.7 A

Warranty: 1 Year

Uses

Power circuit measurement, malfunction analysis, Research and Development
