Analog Bandwidth (-3 dB)350MHz
Rise Time at BNC (typical) ≤1 ns
Analog Channel 4
Max. Sample Rate 2GSa/s for single channels 1GSa/s for half or all channels

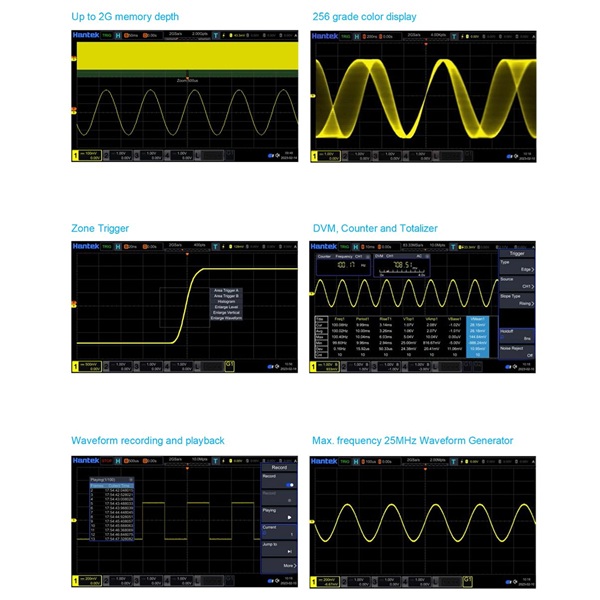

Max. Memory Dept 2Gpts for single channel,1Gpts for half channels
500 Mpts for three or all channels
Display Type: 10.1 inch capacitive multitouch screen
Display Resolution :1024 horizontal by 600 vertical pixels
Waveform Update Rate (Typical): Up to 500,000 wfms/s ( at 25ns, single channel, auto memory depth)
External Trigger :1
Waveform Color Persistence: Standard
Counter: 6-digit frequency counter + totalizer
Integrated Digital Voltmeter: Standard
Waveform Recorder: Standard
Search and Navigation: Standard (supporting table display)
Hardware Mask Test: Standard
Built-in Waveform Generator: 1CH, 25MHz
FFT: Standard
MATH: Displays 4 functions simultaneously
Connectivity: USB Host, USB Device (Type C), LAN
Warranty:
2 Years
Electronics design, testing, research, and analysis. It consolidates multiple functions into a single device, making it a comprehensive tool for engineers and hobbyists.
