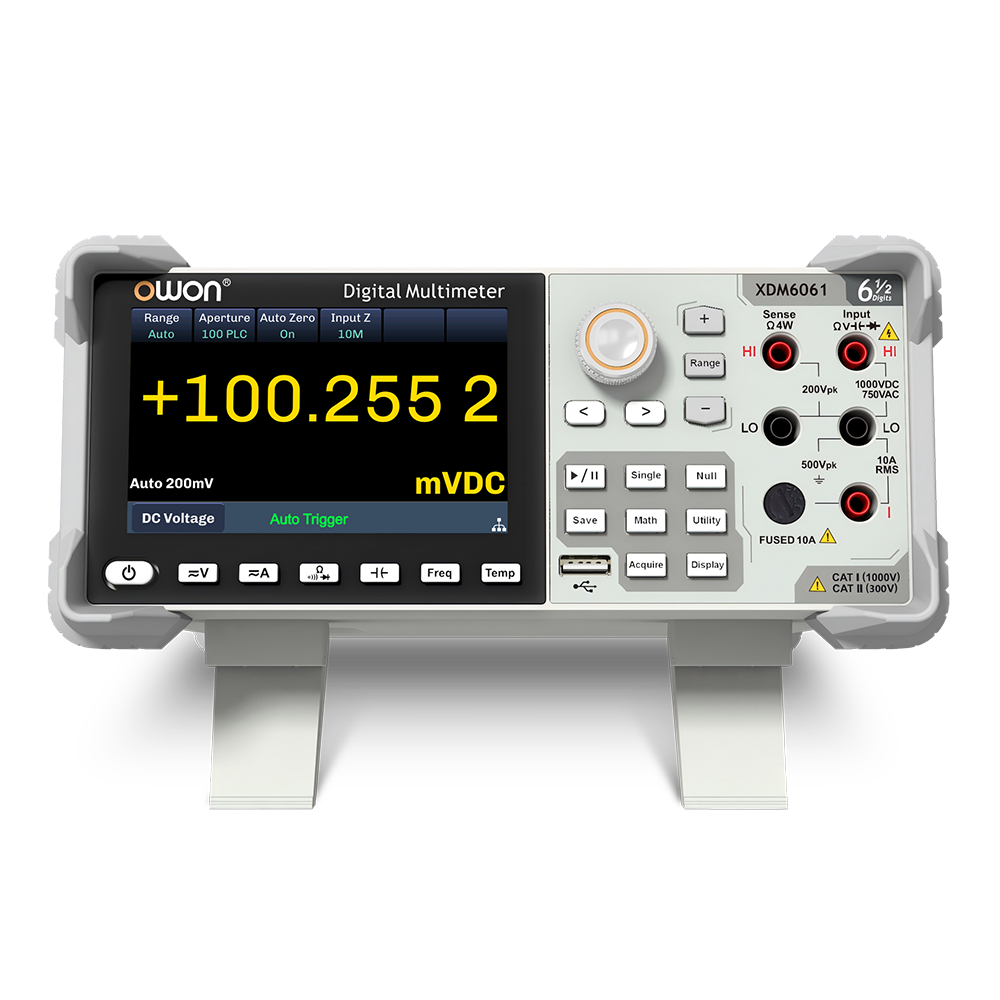

OWON XDM6061 Benchtop Multimeter - 6.5 Digit

True 6½-digit High Resolution, delivers up to 2,200,000 counts for precise and reliable measurements
Wide measurement range up to 1000V / 10A ,
High-speed measurement up to 10,000 rdgs/s, greatly improves testing efficiency.
Comprehensive math functions, include Max, Min, Average, Standard Deviation,Relative Measurement, Bar Graph, Histogram, Trend Chart, dB/dBm, Limit test, and more; perform data analysis directly on the instrument without extra software
Built-in thermocouple cold junction compensation, no need for external compensation hardware, saving accessory costs and improving temperature measurement accuracy
Data Logger Function: records all measurement values in CSV format, with a fastest logging interval of 1ms, 2M points capacity, and expandable to 100M points via USB drive
2 Gb NAND Flash Storage, stores large amounts of instrument setup files and data files.

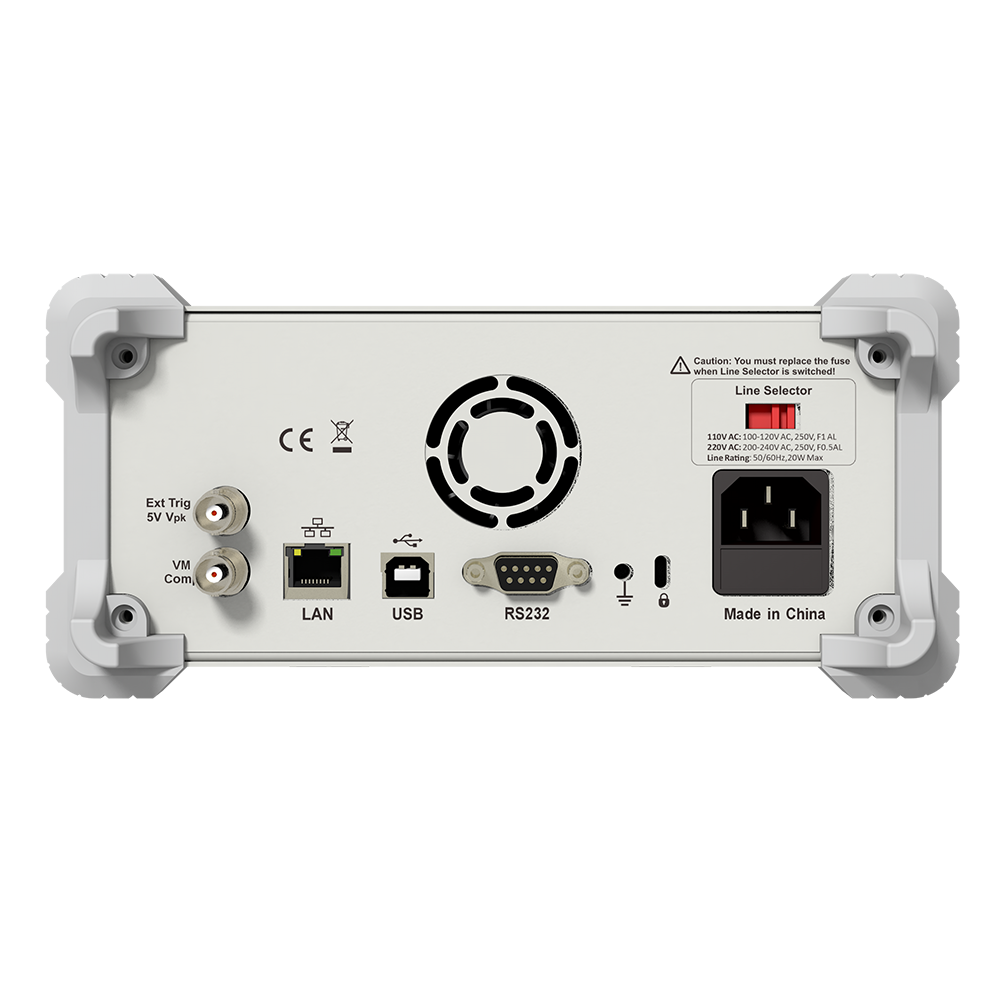

Multiple Interfaces: USB Device / Host, LAN, RS-232; supports standard SCPI commands for easy integration into automated test systems
4.3-inch IPS touchscreen, intuitive operation and graphical display allow engineers to get started faster, reduce operation time, and enhance visualization experience.

ToolWorld is MetroQ Owon Authorized Distributor

Technical Documents - 1

Rs. 85,000.00 /each Save Rs. 20400 (24% Off)

Quantity

Dispatched (in Days): Same day dispatch

Minimum Order Quantity: 1 pcs

Country of Origin: N/A

4 In stock Need more?

Function	Range	Accuracy
DC Voltage	200.000mV – 1000.000V (XDM6061）	0.0035±0.0006
AC Voltage (True RMS)	200.0000mV - 750.0000V	0.06+0.04
DC Current	200.0000μA - 10.00000A (XDM6061)	0.050+0.003
AC Current (True RMS)	200.0000μA - 10.00000A	0.10+0.04
Resistance	200.0000Ω - 100.0000MΩ	0.010+0.001
Diode Test	0 - 5V	0.010+0.020
Continuity Test	2000.0 Ω	0.010+0.020
Frequency / Period	3Hz - 1MHz	0.007
Capacitance	2.0000nF - 100.00mF	1 + 0.3
Temperature	thermocouple (ITS-90 conversion between B / E / J / K / N / R / S / T type)	0.16℃
	thermal resistance (RTD sensor conversion between Pt100 and Pt385 type)
	2-wire and 4-wire thermistors (5 kΩ 44007 type)
Mathematical Functions	Min, Max, Avg, Std Dev, dBm, dB, Limit，Relative，Histogram, Trend Chart, Bar Chart
Trigger	External Trigger、VMC out
Data-logger Function
Logging Duration	1ms-3600s
Logging Length	2M points (Internal memory)
General
Dimension (W x H x D)	346mm x 260 mm x 107 mm
Weight	3.4kg (without package)

Warranty: 1 Year

Industrial use- High precision 6.5 digit benchtop multimeter

Function	Range	Accuracy
DC Voltage	200.000mV – 1000.000V (XDM6061）	0.0035±0.0006
AC Voltage (True RMS)	200.0000mV - 750.0000V	0.06+0.04
DC Current	200.0000μA - 10.00000A (XDM6061)	0.050+0.003
AC Current (True RMS)	200.0000μA - 10.00000A	0.10+0.04
Resistance	200.0000Ω - 100.0000MΩ	0.010+0.001
Diode Test	0 - 5V	0.010+0.020
Continuity Test	2000.0 Ω	0.010+0.020
Frequency / Period	3Hz - 1MHz	0.007
Capacitance	2.0000nF - 100.00mF	1 + 0.3
Temperature	thermocouple (ITS-90 conversion between B / E / J / K / N / R / S / T type)	0.16℃
	thermal resistance (RTD sensor conversion between Pt100 and Pt385 type)
	2-wire and 4-wire thermistors (5 kΩ 44007 type)
Mathematical Functions	Min, Max, Avg, Std Dev, dBm, dB, Limit，Relative，Histogram, Trend Chart, Bar Chart
Trigger	External Trigger、VMC out
Data-logger Function
Logging Duration	1ms-3600s
Logging Length	2M points (Internal memory)
General
Dimension (W x H x D)	346mm x 260 mm x 107 mm
Weight	3.4kg (without package)
