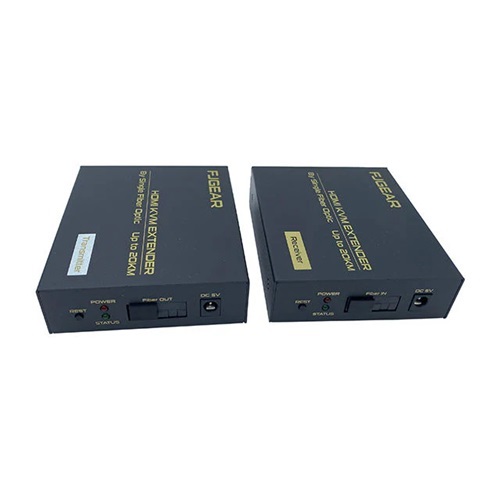

Model SP-HDMI KVM Extender 20KM (1920×1080P)
Maximum Resolution 1920×1080p @ 60Hz (Full HD)
Transmission Distance Up to 20km over single-mode fiber optic cable
Signal Type HDMI + USB (KVM control)
Video Bandwidth 165MHz / 1.65Gbps per channel (4.95Gbps total)
Audio Support HDMI embedded audio
USB Support Keyboard, mouse, and select USB peripherals
HDCP Compliance Yes
Connectors HDMI Input / Output
USB Type-A for devices
USB Type-B for host
Single-mode LC fiber optic port
Fiber Mode Single-mode, 9/125μm
Wavelength 1310nm or 1550nm (depending on model)
Power Supply DC 5V (included)
Material Metal enclosure for durability and EMI shielding
Operating Temperature 0°C ~ 60°C
Installation Plug-and-play, no drivers required
Warranty:
As per Brand policy
Remote control rooms and monitoring stations, Broadcast studios and media production facilities, Industrial and manufacturing control systems, Security and surveillance operations
