UNI-T Authorized brand

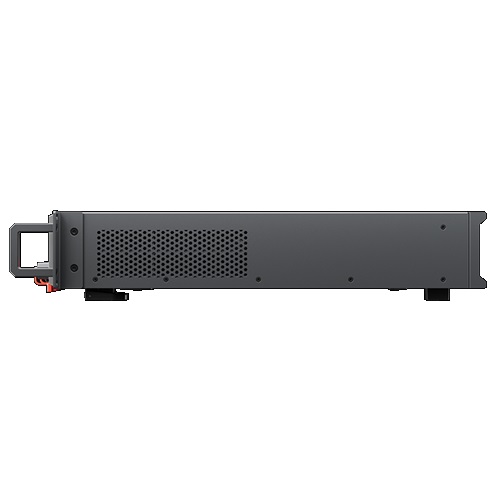

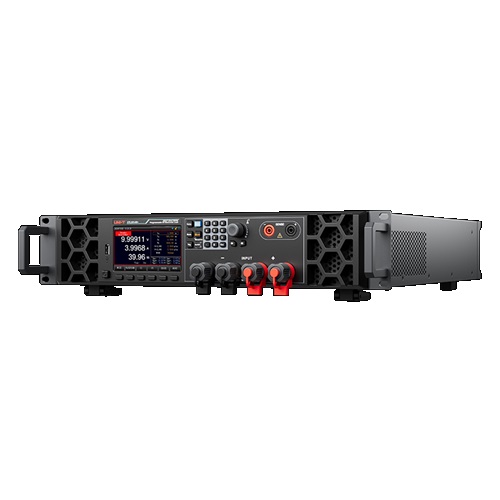

UNI-T UTL8514B+ DC electronic load, 500V 120A- 1500W

SKU: UTL854B
Rs. 242,500.00 MRP Rs. 250,000.00 Save Rs. 7,500.00 (3% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.

UTL8500+ series DC electronic load is a new generation of intelligent large-screen and cost-effective electronic load. Up to 500KHz synchronous sampling, high-performance DSP processing. The fast, efficient and intuitive LIST programmable automatic test mode meets most R&D and testing needs.

  • Voltage: 500V
  • Current 120A
  • Total Power: 1500W
  • Resolution: 0.1mV/0.2mA
  • Max Dynamic Frequency: 50kHz

ToolWorld is UNI-T Authorized Distributor

Product information

Everything you need to know

Technical Specifications

MODEL UTL8514B+

VOLTAGE 500V

CURRENT 120A

TOTAL POWER 1500W

RESOLUTION: 0.1mV/0.2mA

MAX. DYNAMIC FREQUENCY 50kHz

CURRENT SLEW RATE 1.2A/ms-2.4A/μs

SIZE ½ 2U

CONNECTIVITY RS232

Warranty
3 Year

Recommended Uses

Meet different customers' needs from Education, Scientific Research and Manufacturing
