Height 102mm
Length 273mm
Dimensions L x W x H 273.0 x 235.0 x 102.0mm
Capacity (l/min) 18 l/min
Equipotential Bonding Socket Via 3.5mm pawl socket on back of device (hard-grounded)
ESD Safe Yes
Interface 1x USB, 2x RS232, 2x Switching Output
Maximum Hot Air Flow Rate l/min (Depends on Tool) 15 l/min
Noise level (distance 1 m) dB(A) 0.7 bar
Number of Channels 3
Overcurrent Release 2 A
Power 420 W (600 W)
Temperature Accuracy °C ± 9°C
Temperature Accuracy °F ± 17°F
Temperature Accuracy for Hot Air ± 30°C, ± 54°F
Temperature Range °C 100 - 450 °C (550 °C)
Temperature Range °F 200 - 850 °F (999 °F)
Temperature Stability °C ± 2°C
Temperature Stability °F ± 4°F
Tip Type WX
UPC 4003019435838
USB USB interface of firmware updates, parameterization and monitoring USB interface supports all standard USB flash drive types
Weight (Catalog) 6.70 kg
Product Family Rework, Hot Air, Desoldering Stations
Warranty:
As per Brand policy

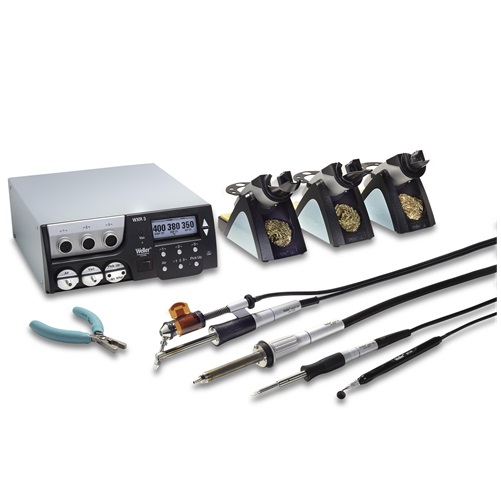

A single station that combines performance, precision, and productivity — the Weller WXR3031 sets the standard for professional rework solutions.
