Output current Rated current is 2A, maximum 3A(Additional heatsink is required)
Switching Frequency 150KHz
Operating temperature Industrial grade (-40 to +85 )
Conversion efficiency 92%(highest)
Load Regulation ± 0.5%
Voltage Regulation ± 0.5%
Dynamic Response speed 5% 200uS
Dimension 45*20*14mm(L*W*H)
Shipping Weight 0.011 kg
Shipping Dimensions 5 × 4 × 2 cm
Warranty:
N/A

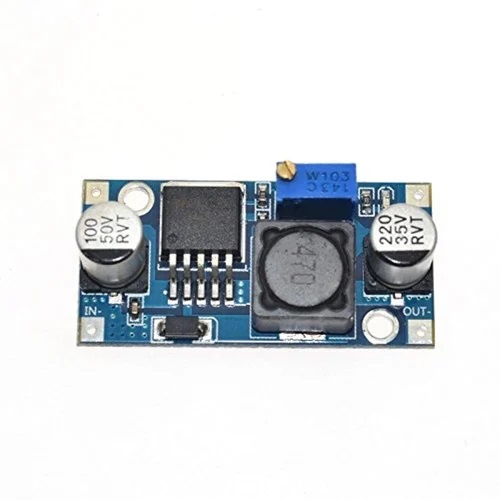

Power module with the high-precision potentiometer, capable of driving a load up to 3A with high efficiency, which can work with Freeduino UNO, other mainboards, and basic modules.
