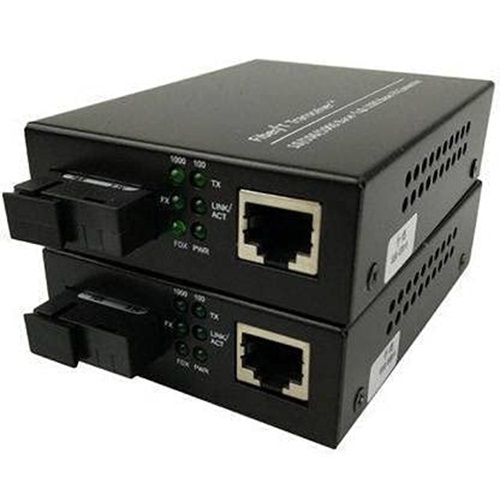

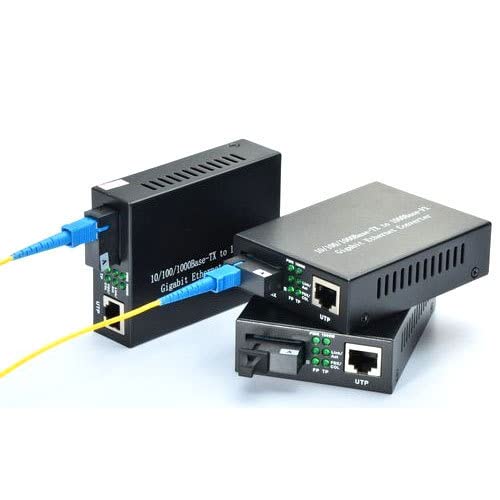

Model SP - Single Mode Single Fiber Giga Media Converter – 10/100/1000 Mbps
Standards IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-LX
Data Rate 10/100/1000 Mbps auto-negotiation
Transmission Medium Copper: Cat5/5e/6 UTP cable (up to 100m)
Fiber: Single-mode, single fiber
Fiber Port Connector SC / FC / ST (model dependent)
Transmission Distance Up to 20 km (standard), higher options available: 40/60/80 km
Wavelength Tx: 1310 nm, Rx: 1550 nm (and vice versa on paired unit)
Duplex Mode Full duplex / Half duplex (auto)
Auto MDI/MDIX Supported
LED Indicators Power, FX Link/Act, TX Link/Act, Speed, Duplex
Power Supply DC 5V external power adapter
Housing Durable metal enclosure for heat dissipation and EMI protection
Operating Temperature 0°C ~ 50°C
Storage Temperature -20°C ~ 70°C
Humidity 10% ~ 90% non-condensing
Dimensions Compact desktop or rack-mount design (model dependent)
Warranty:
As per Brand policy
Ideal for backbone networking, data centers, IP CCTV, ISPs, and telecom applications.
