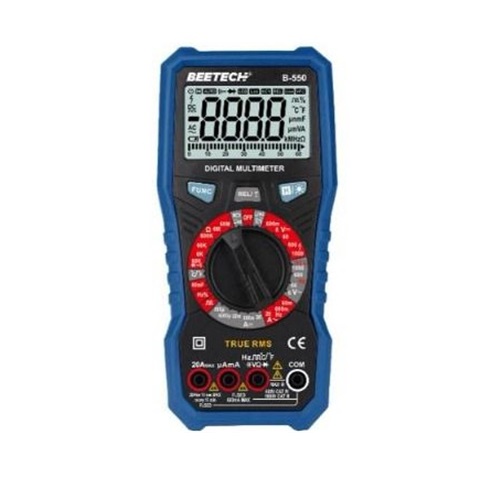

Beetech B-550 750V Digital Multimeter

SKU: B00550
Rs. 2,480.00 MRP Rs. 3,500.00 Save Rs. 1,020.00 (30% off) Inclusive of GST-18%
In Stock (5 available) Dispatch lead time: Same Day Dispatch MOQ 1 piece
Quantity to add

Beetech B-550 is a 6000 Count Mnaual Digital Multimeter which measures electronic circuits and electronic values more accurately. It is auto as well as manual ranging and a  True RMS Multimeter with high performance capacity. It is equipped with 1000V DC and 750V AC measurement as well as 20A AC/DC Current Measurement. It is also capable to test Resistance  upto 60 MΩ, Capacitance upto 60 mF, Frequency upto 9.999 MHz, Temperature upto 1000°C, Diode testing, Continuity Test ,Duty Cycle Test, Capacitance test & NCV.

  • Display Mode: LCD
  • Display Counts: 6000
  • Ranging : Auto and Manual
  • Display shows minimum/maximum value.
  • Display freezes present reading
  • True RMS
  • Duty cycle test.
  • AC/DC Voltage
  • AC/DC Current
  • Resistance
  • Capacitance
  • Frequency
  • Temperature
  • Diode Test
  • Continuity Test
  • NCV
  • Data Hold
  • Backlight
  • Auto Power Off
  • Low Battery Indication



Product information

Everything you need to know

Technical Specifications

 DC VOLTAGE

Range : 600 mV – 1000V

Accuracy : ±(0.5% + 3)

Resolution : 0.001 V – 1 V

AC VOLTAGE

Range : 600 mV – 750V

Accuracy : ±(1% + 3)

Resolution : 0.1 V – 1 V

DC CURRENT

Range : 20A – 600 µA

Accuracy : ±(1.2% + 3)

Resolution : 0.01 A – 0.1 µA

AC CURRENT

Range : 20 A – 600 µA

Accuracy : 0.01 A – 0.1 µA

Resolution : ±(1.2% + 3)

CAPACITANCE

Range : 9.999nF – 60mF

Accuracy : ±(5% + 20) / ±(2% + 5) / ±(5% + 5)

Resolution : 0.001 nF – 1 mF

FREQUENCY

Range : 6 Hz – 10 MHz

Accuracy : ±(0.1% + 2)

Resolution : 9.999 Hz – 9.999 MHz

RESISTANCE

Range : 600 Ω – 60 M Ω

Accuracy : ±(0.5% + 3) / ±(1.5% + 3)

Resolution : 0.1 Ω to 0.01 M Ω

Warranty
As per Brand policy

Application

Industrial uses
