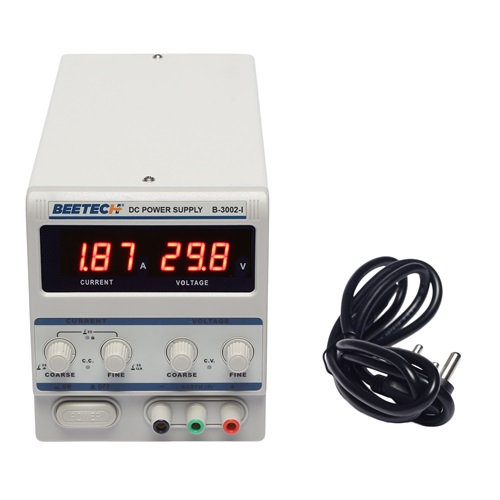

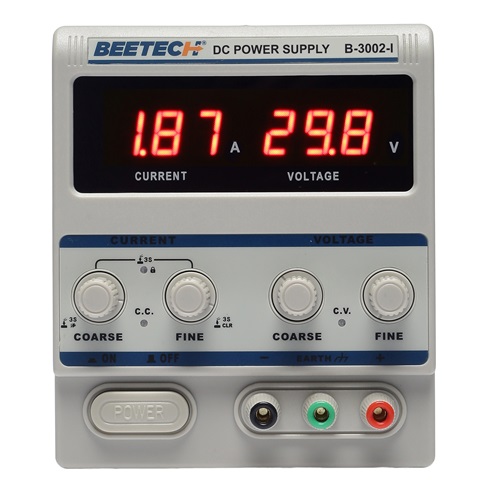

Beetech B-3002-I Power Supply

SKU: B3002I
Rs. 5,750.00 MRP Rs. 7,000.00 Save Rs. 1,250.00 (18% off) Inclusive of GST-18%
In Stock (5 available) Dispatch lead time: Same Day Dispatch MOQ 1 piece
Quantity to add

The RPS series DC power supply is designed for scientific study, product development, laboratory, junior college and electronic production line. Output voltage and output current between0and rated value are continuously adjustable. They have high precision, high reliability and perfect overload protection circuit. These products are the best choice of auto industry electronic industry, communications industry, digital product, research

institutions and educational institutions. This series DC power supply works on the characteristic of constant voltage/constant current automatic switching type. It can switchover continuously between the constant voltage and constant current state along with the variation of the loads.

  • Current preset, current limiting protection
  • Automatic switching of constant voltage / constant current
  • Fine adjustment knob of voltage / current
  • Three-digit display of voltage and current, with display accuracy 0.1V 0.01A
  • Low noise (Temperature controlled fan is adopted, and it starts automatically to dissipate heat when internal temperature is greater than 50°C
  • 3 Digit LED Display



Product information

Everything you need to know

Technical Specifications

Voltage output range 0-30V

Current output range 0-2A

Current and voltage display model A means pointer display, D means LED display

Display precision Pointer display: ±2.5% Digital display: ±1% ±1 word

Input voltage AC 220V ±10% (switch to choose) 50/60Hz

Operating condition -10˚C ~ 40˚C, ≤ 90%RH

Storage condition -10˚C ~ 40˚C, ≤ 80%RH

Constant voltage working conditions

1. Voltage stability ≤ 0.01% + 2mV

2. Load stability ≤ 0.01% + 2mV

3. Recovery time ≤ 100µs

4. Ripple and noise ≤ 1mVrms (effective value)

5. Temperature coefficient ≤ 200PPM˚C

Constant current working condition

1. Current stability ≤ 0.2% + 3mA

2. Load stability ≤ 0.2% + 3mA

3. Ripple and noise ≤ 2mArms (effective value)

Weight 2.8 KGS

Warranty
As per Brand policy

Application

For scientific study, product development, laboratory, junior college and electronic production line
