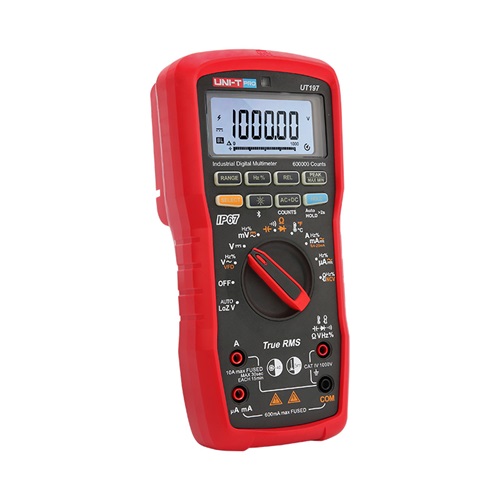

UNI-T UT197 Industrial Digital Multimeter

SKU: UT1970 4.5 (2 Reviews)
Rs. 33,550.00 MRP Rs. 40,150.00 Save Rs. 6,600.00 (17% off) Inclusive of GST-18%
In Stock (5 available) Dispatch lead time: Same Day Dispatch MOQ 1 piece Technical datasheet (PDF)
Quantity to add

The UT197 is a high – precision true RMS handheld digital multimeter with 600,000 – count display. It has IP67 protection, can endure 5m drops, and operates in – 40°C~55°C, suiting harsh outdoor conditions. Its built – in VFD anti – interference startup mode filters out carrier – frequency and distorted – voltage interferences for stable inverter measurements. The 1000A AC/DC current measurement (UT – CS07) with Bluetooth enables result recording via UNI – T SmartTest APP, generating graphs and tables. Certified to CAT IV 1000V safety level (CE, cETLus), it’s widely used in power construction, equipment maintenance, petrochemical, engineering, HVAC, new – energy, factory, and laboratory applications.

  • True RMS measurement
  • AC/DC voltage: 1000V
  • AC/DC current: 10A
  • Display count: 600,000 & switchable; 9,999(Hz)
  • 12kV pulse protection & anti-EMC interference
  • IP67 & 5m Drop Protection
  • Overvoltage category: CAT IV 1000V
  • Working environment: -40 °C ~ 55 °C
  • Input terminal visible alarm
  • Automatically backlight
  • Bluetooth function
  • Support UT-CS06A/UT-CS09D current sensor



Product information

Everything you need to know

Reviews (2)

Technical Specifications

AC Current (A)  600.00uA/6000.0uA/60.000mA/600.00mA/6.0000A/10.000A ±(0.5%+50)

DC Current (A) 600.00uA/6000.0uA/60.000mA/600.00mA/6.0000A/10.000A ±(0.1%+20)

AC+DC Current (A)         600.0uA/6000uA/60.00mA/600.0mA/6.000A/10.00A  ±(1.0%+5)

AC Voltage (V)  600.00mV/6.0000V/60.000V/600.00V/1000.0V              ±(0.3%+20)

Voltage (DCV) (60000 count)     600.00mV/6.0000V/60.000V/600.00V/1000.0V              ±(0.03%+5)

Voltage (DCV) (600000 count)  600.000mV/6.00000V/60.0000V/600.000V/1000.00V ±(0.015%+10)

Auto AC/DC Voltage      600.0V ±（0.8％＋5）

Voltage Range (ACV+DCV)         600.0mV/6.000V/60.00V/600.0V/1000V             ±（0.8％＋5）

Externalcurrent (DC) (Optional: UT-CS07)          100.0A（(10mV/A)/1000A(1V/A)             ±(1.5%+5)

Externalcurrent (AC) (Optional: UT-CS07)           100.0A（(10mV/A)/1000A(1V/A)             ±(1.5%+5)

Frequency (Hz) 10Hz～1MHz   ±(0.002%+5)

Resistance (Ω) 600.00Ω/6.0000kΩ/60.000kΩ/600.00kΩ/6.0000MΩ/60.00MΩ              ±(0.07％+2）

Capacitance (F)              60.00nF/600.0nF/6.000μF/60.00μF/600.0μF/6.000mF/60.00mF           ±(0.8％+3）

Temperature (℃)             -40℃~1000℃  ±(1.0%+15)

Temperature (℉)             -40℉~1832℉   ±(1.0%+30)

Duty Cycle (%) 10Hz～10kHz

                          (10%~90%)     ±(1.2%+5)

Warranty
1 Year

Application

It’s widely used in power construction, equipment maintenance, petrochemical, engineering, HVAC, new – energy, factory, and laboratory applications.
