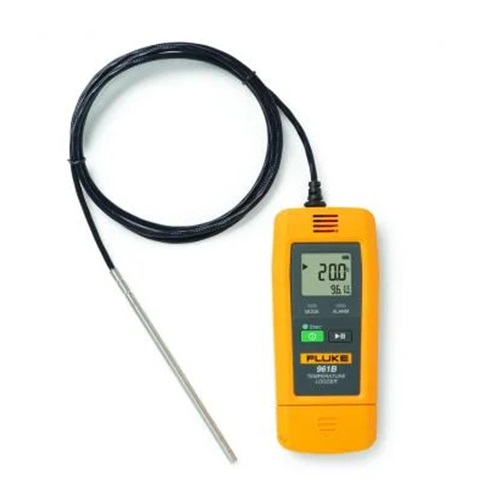

Sensor Type External
Temperature Measurement Range -85.0 °C to 150.0 °C
Accuracy ±(0.3 + 0.005 x |readings|) °C
Resolution 0.1 °C
Humidity Measurement
Range NA
Accuracy NA
Resolution NA
Date Storage 32 000
Logging Interval 10 s to 24 hr
Start Mode Press button or use software
Stop Mode Press button, use software or stop-when-full
Alarm Threshold Up to 3 upper temperature limits and 2 lower temperature limits
1 upper humidity limit and 1 lower humidity limit
Alarm Type Single / Cumulative
Report Format PDF (direct read via a PC), Excel and TXT (via PC software)
General Specifications
Temperature Operating -30 °C to 70 °C (the Logger)
Storage -30 °C to 70 °C (the Logger)
Altitude Operating 2 000 m
Storage 12 000 m
Relative Humidity Operating 0% RH to 100% RH, non-condensing
Storage <75% RH
Power Supply Battery type CR2450 x 1
Battery Life 1 year (logging @ 15 min interval, 25 °C)
Safety IEC 610101-1, Pollution Degree 2
Dimensions (L x W x H) 107 mm x 47 mm x 17 mm (No external probe)
Weight 88 g (with battery)
IP Rating IEC 60529: IP65
Electromagnetic Compatibility (EMC) IEC 61326-1: Basic Electromagnetic Environment; CISPR 11: Group 1, Class A
Warranty:
As per Brand policy
Cold-chain transportation, Cold storage validation, Fresh food, Temporary transhipment
