UNI-T Authorized brand

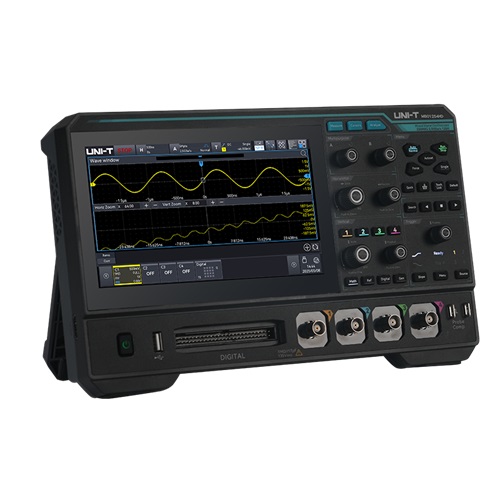

UNI-T MSO1254HD-S High Resolution Oscilloscope- 250MHz 4Channel

SKU: MSO12HD
Rs. 126,500.00 MRP Rs. 137,500.00 Save Rs. 11,000.00 (8% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.

MSO1000HD series high-resolution oscilloscope has the maximum bandwidth of 250 MHz, the maximum sample rate of 2.5 GSa/s, and is equipped with 4 analog channels and 16 digital channels, with the memory depth of up to 100 Mpts. MSO1000HD series adopts exclusive Ultra Phosphor 3.0 technology, achieving the waveform capture rate of up to 200,000 wfms/s, with 256 levels of gray temperature colors, and features an innovative digital trigger system with high trigger sensitivity and low jitter

12-Bit High-Resolution ADC

  • 4096-level quantization (16× finer than 8-bit ADCs) enables precise waveform detail restoration, ideal for capturing subtle signal variations.

High-Speed Signal Capture

  • Bandwidth: 250 MHz
  • Sample Rate: 2.5 GSa/s (single channel)
  • Deep Memory: 100 Mpts/CH for long-term signal recording without data loss

Ultra Phosphor 3.0 Technology

  • 200,000 wfms/s capture rate with low-jitter digital trigger system for real-time anomaly detection.

Compact Mixed-Channel Design

  • Analog channels + 16 digital channels (MSO models) for concurrent analog signal analysis and digital protocol debugging.
Product information

Everything you need to know

Technical Specifications

Type MSO1254HD

Analog Channels 4

Sample Rate 2.5GSa/s

Memory Depth 100Mpts

Waveform Capture Rate 1,000,000wfms/s

Digital Channels 16

Computer serial bus triggering and analysis             RS-232/422/485/UART       Standard

Embedded serial bus triggering and analysis                  I2C, SPI                              Standard

Automobile serial bus triggering and analysis                CAN                                     Standard

Automobile serial bus triggering and analysis                 LIN                                      Standard

Automobile serial bus triggering and analysis            CAN-FD                                   Standard

Audio serial bus triggering and analysis                           Audio                                 Standard

Warranty
3 Year

Recommended Uses

Embedded System Debugging
Analog Circuit Design & Signal Integrity
Automotive Electronics Diagnostics
Education & Electronics Training Labs
