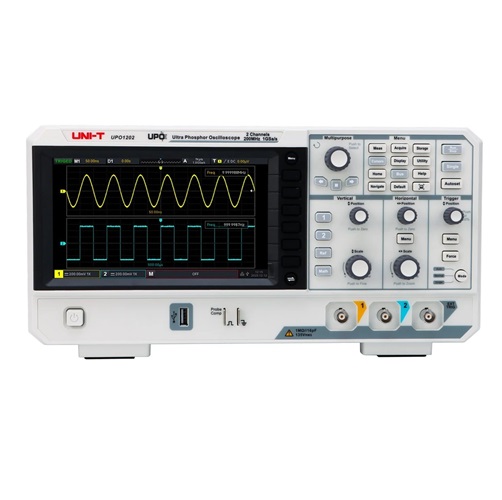

Model Number UPO1202
Scope Type DSO
Bandwidth 200MHz
Channels 2Ch
Scope Sample Rate 1.0GSa/s Per Channel
Memory Depth 56Mpts
Refresh Rate 500,000wfms/s
Vertical Scale @1MΩ 500μV/div to 20V/div
# Automatic Measurements 36
Included Bus Protocols RS232 UART I2C SPI
Optional Bus Protocols None
Logic Pod Included Not Available
Signal Generator Function Not Available
Frequency Meter 7-bit
Display Size (in) 7in
Touchscreen No
Product Dimensions (L x W x H) 13 in x 4 in x 6 in
Product Weight 7 lb
Certifications CE/cETLus/UKCA
Documents English download guide, multi-language safety manual, calibration report (COC)
Included Accessories Oscilloscope probe (UT-P05)*2
Standard Accessories Power cord, USB2.0 printing cable
Warranty:
3 Years
Applications: Electronic circuit debugging Circuit testing Design and manufacture Education and training Automobile maintenance and testing
