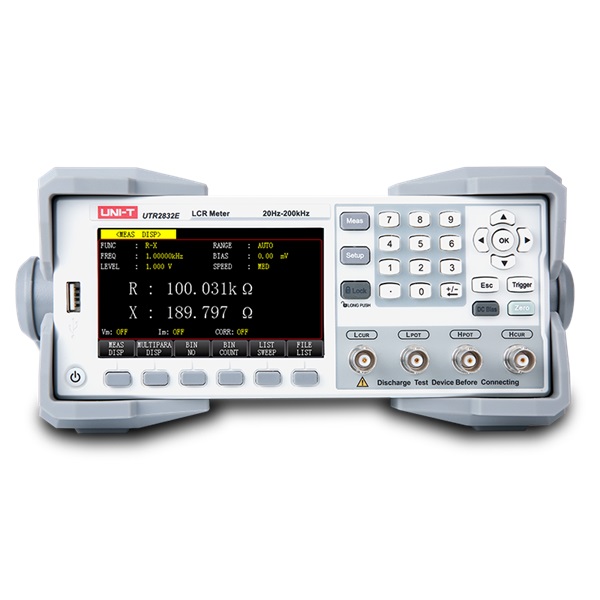

The UTR2830 series LCR digital bridge is a new generation of low-frequency electronic components measuring instruments. It has the advantages of small size, light weight, beautiful appearance, easy operation, high-cost performance and good test stability. Can meet the needs of production line quality assurance, incoming inspection and automated production.
Primary parameter
Secondary parameter
The test result of the primary and secondary parameter will be displayed in big character in two lines. The primary parameter is displayed at the higher line and the secondary parameter is in the under line.
MODEL UTR2833E
MAX. TEST FREQUENCY 300KHz
ACCURACY LCRZ 0.05%, DCR 0.1%
DISPLAY COUNT 6-bit
MAX. TEST RATE 80rdgs/s
DCR YES
CONNECTIVITY RS232, HANDLER, USB HOST, USB DEVICE, LAN
DISPLAY 4.3'' TFT LCD
Warranty: As per brand policy
Industrial uses
