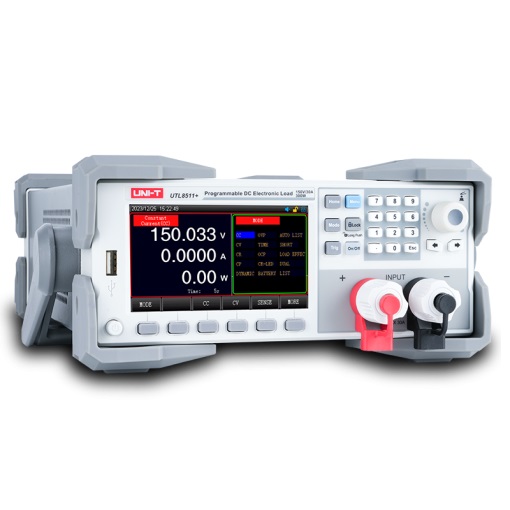

UNI-T UTL8511+ DC Electronic Load- 150V 30A 150W

SKU: UTL851P
Rs. 36,300.00 MRP Rs. 40,150.00 Save Rs. 3,850.00 (10% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.

New Launch

The UTL8500+ Series is a cost-effective programmable DC electronic load series with high performance. With a resolution of 0.1mV and 0.1mA,  multiple protection mechanisms significantly improve the reliability of the equipment.  The Series has a variety of testing functions and modes, equipped with RS-232 communication interface, and can be equipped with other  communication interfaces according to design and testing requirements.The Series provides a flexible, fast and effective solution.

  • 150V Voltage 30A Current 150W Total Power,  0.1mV/0.01mA Resolution
  • 4.3 inch LCD screen display:
  • Four basic working modes: CC/CV/CR/CP,
  • Multiple protection functions Various protections such as over voltage, low voltage, over current, over power, over heat, anti-reverse connection, etc.
  • UTL8500 series electronic loads provide more test modes for users to choose, including dynamic test, list test, combination test, OCP/OPP test, CR-LED test, battery test, load effect, OVP test , Short circuit, time test and other modes.
  • Screenshot function, list call and system upgrade Press the [Screenshot] button to save the current screen image to the USB flash drive,or save the frequently used list test files in Flash or USB flash drive, so that they can be called when needed next time, and the system can be upgraded quickly through the USB flash drive.
Product information

Everything you need to know

Technical Specifications

VOLTAGE:150V

CURRENT: 30A

TOTAL POWER: 150W

RESOLUTION: 0.1mV/0.01mA

MAX. DYNAMIC FREQUENCY: 50kHz

CURRENT SLEW RATE:" 0.0006A/μS-3A/μS

CONNECTIVITY: RS232

Warranty
3 Year

Recommended Uses

Meet different customers' needs from Education, Scientific Research and Manufacturing
