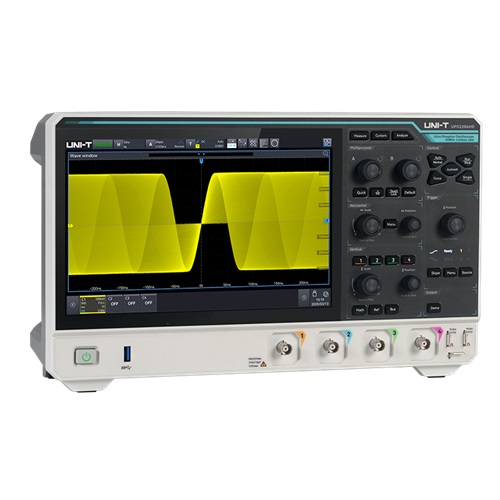

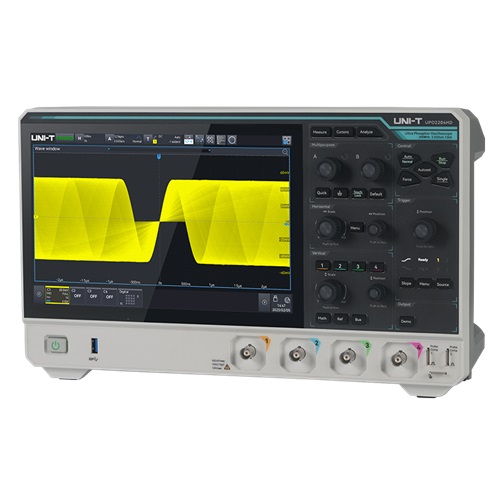

UNI-T UPO2204HD High Resolution Oscilloscope

UPO2000HD series high-resolution oscilloscope has the maximum bandwidth of 200 MHz, the maximum sampling rate of 2.5 GSa/s, with the memory depth of up to 100 Mpts. UPO2000HD series adopts exclusive Ultra Phosphor 3.0 technology, achieving the waveform capture rate of up to 1,000,000 wfms/s, with 256 levels of gray temperature colors, and features an innovative digital trigger system with high trigger sensitivity and low jitter. Multiple advanced measurement and analysis functions and rich trigger decoding types. Can be widely used in communication, aerospace, education and many other industries and fields.

Bandwidth 200MHz
Analaog Channels:4
Real time sample rate 2.5GSa/s
2D Infinite Zoom
56 types: Measurement, Statistics, Trend Graphs
Protocol Decoding And Triggering
Versatile Testing Equipment

Technical Documents - 1

Rs. 180,000.00 /each Save Rs. 30000 (17% Off)

Rs. 150,000.00 /each (Incl GST-18%)

Technical Specifications

Bandwidth 200MHz

Analaog Channels:4

Real time sample rate 2.5GSa/s

Memory Depth 100Mpts

Waveform Capture Rate 1,000,000wfms/s

Warranty: As per Brand policy

Uses

Can be widely used in communication, aerospace, education and many other industries and fields.

Technical Specifications
Uses

Bandwidth 200MHz

Analaog Channels:4

Real time sample rate 2.5GSa/s

Memory Depth 100Mpts

Waveform Capture Rate 1,000,000wfms/s

Warranty: As per Brand policy

Can be widely used in communication, aerospace, education and many other industries and fields.
