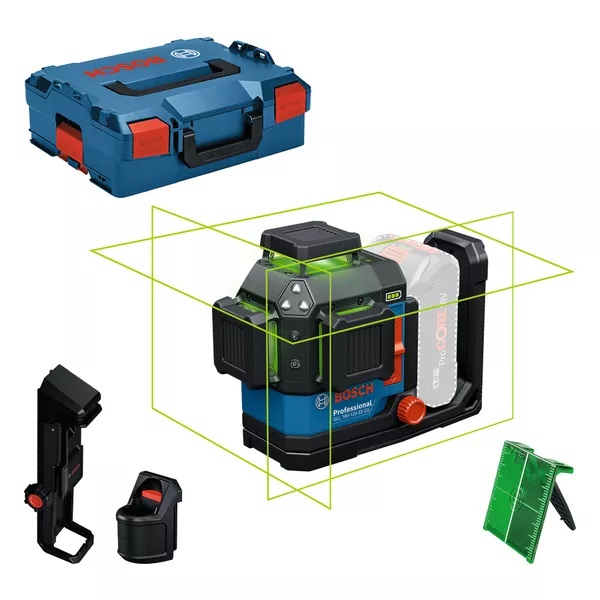

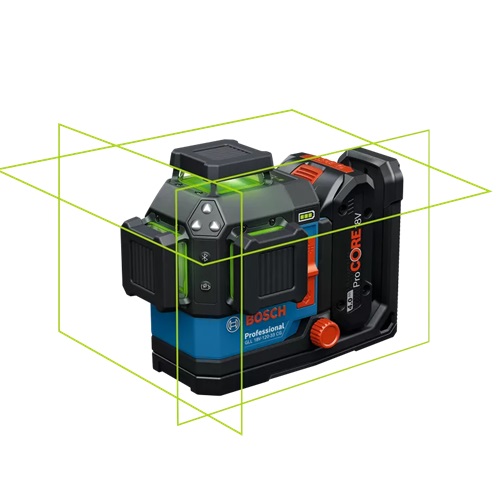

Bosch GLL 18V-120-33 CG Professional Line Laser

SKU: GLL18V

Rs. 60,000.00 MRP ~~Rs. 65,000.00~~ Save Rs. 5,000.00 (8% off) Inclusive of GST-18%

Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)

Easily switch between 18V, 12V, and alkaline C-cell power sources to avoid downtime
Rubber-enforced housing and laser windows, and an IP65 rating for peace of mind on the toughest jobsites
Secure mounting and precise work are made easy thanks to the integrated mount with strong magnets and pivot fine adjustment
SKU 0 601 065 1K0
EAN 4059952655437

Product information

Everything you need to know

Technical Specifications

Tripod thread 1/4", 5/8"

Battery voltage 18.0 V, 12.0 V

Laser diode 500 – 540 nm, < 10 mW

Operating temperature -10 – 40 °C

Storage temperature -20 – 70 °C

Laser class 2

Working range radius up to 35 m

Working range with receiver radius up to 120 m

Accuracy ± 0.3 mm/mᵃ

Self-levelling range ± 4°

Levelling time 3 s

Dust and splash protection IP65 (except for the battery or battery adapter)

Power supply 18 V Li-ion battery, 12 V Li-Ion battery, 4 x 1.5 V LR14 (C)

Operating time (max.) 20 h (18V 4Ah Li-Ion), 8 h (12V 2Ah Li-Ion), 8 h (4 x C, energy saving mode) in 3-line mode

Weight, approx. 1.3 kg

Colour of laser line green

Projection 3 x 360° line

Compatible laser receivers LR 7

Weight with 4.0 Ah battery 1.9 kg

Weight with alkaline batteries 1.8 kg

Working range, value 35 m

Working range with receiver, value 120 m

Warranty

As per Brand policy

Recommended Uses

Ideal for construction workers setting up drywalls, installing studs, or aligning window or door frames – as well as for installing suspended ceilings and piping, and aligning sockets.
