Bakon Authorized brand

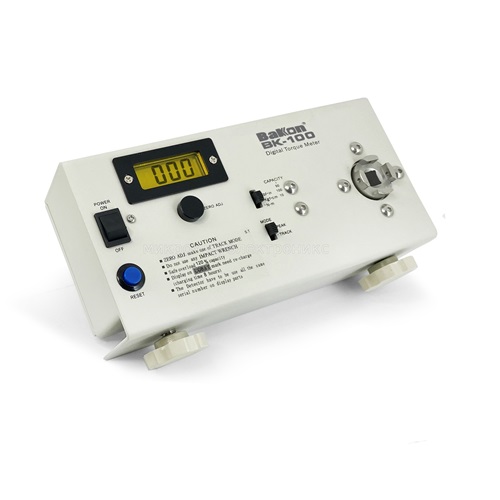

Bakon BK-100 Torque Test Instrument

SKU: BK0100
Rs. 60,000.00 MRP Rs. 84,900.00 Save Rs. 24,900.00 (30% off) Inclusive of GST-18%
In Stock (4 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add



  • Automatic shutdown (OFF after 10 minutes);
  • Can calculate the maximum value of torque, minimum and mean value;
  • Torque value display automatically zeroes;
  • Automatic deletion of torque value (the time required to adjust the automatic reset by switching)
  • Use LCD to display test values. Easy to read.
  • The torque value can be set and the buzzer can be used to prompt the operator
  • When setting tool torque, peak display is retained until reset to ensure accuracy
  • It can be tested when the reverse direction is reversed
  • Inverse time direction measurement, data show negative;
  • The strain gauge is directly attached to the torsion sensor. The design of its own shock-proof device is simple
  • Can be connected to external data processing control system
  • This tester USES rechargeable batteries. Small size. Light weight, easy to carry
  • The data output port can be transmitted to the computer for processing



Product information

Everything you need to know

Technical Specifications

Digital torsion tester            G-5                   G-10                    G-50                     G-100

The peak range N.m        0.002-0.5    0.015-1.000             0.075-5.00              0.15-10.00

                         Lbf.in      0.020-4.34       0.15-9.0                 0.75-45.0                1.5-90.0

                        Kgf.cm     0.020-5.00    0.15-10.00                0.75-50.0               1.5-100.0

Precision Less than 0.5% + / -

Volume (mm) 123 x 230 x 65

Weight (kg) 1.8

The power supply 1.2 V NiCd battery 5, 1200mAh

Charging time 6 hours

Continuous service time Eight hours

Transformer Enter AC110V or 220 V, output dc7.25v / 120mA

Warranty
As per Brand policy

Recommended Uses

Industrial uses
