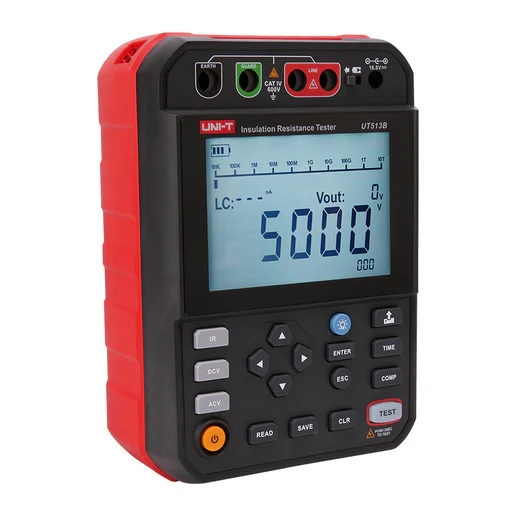

UNI-T UT513B 5kV High-Voltage Insulation Resistance Tester

SKU: UT513B
Rs. 47,500.00 MRP Rs. 49,950.00 Save Rs. 2,450.00 (5% off) Inclusive of GST-18%
In Stock (1 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add

The UNI-T UT513B is a professional-grade 5kV digital insulation resistance tester engineered for electrical engineers, maintenance professionals, and contractors who demand precise measurements and comprehensive diagnostics for high-voltage equipment. With its innovative dot matrix display and measurement capability up to 2TΩ, the UT513B represents a significant advancement in portable insulation testing technology.

Featuring multi-voltage testing capabilities, advanced timing functions, and integrated analysis tools like PI and DAR measurements, the UT513B delivers laboratory-grade precision in a field-ready instrument. The rechargeable lithium battery provides extended operation for comprehensive testing sessions, while the CAT IV 600V safety rating ensures maximum protection in industrial environments.

Whether you're testing motors, transformers, cables, or switchgear, the UNI-T UT513B combines powerful diagnostic capabilities with user-friendly operation to streamline your testing process and provide the insights needed for confident decision-making about critical electrical systems.

Key Features

  • High-voltage output up to 5kV with precise control
  • Ultra-wide insulation resistance measurement range up to 2TΩ
  • Selectable test voltages: 250V, 500V, 1000V, 2500V, and 5000V
  • Dot matrix LCD screen for enhanced data visualization
  • PI (Polarization Index) and DAR (Dielectric Absorption Ratio) testing capabilities
  • Automatic leakage current display during measurements
  • 10% stepping voltage function for detailed insulation profiling
  • Timer measurement for standardized testing protocols
  • Comparison function for quick pass/fail assessment
  • Extensive data storage for 999 measurement sets
  • USB interface for PC data transfer and analysis
  • Automatic discharge function for safety after testing
  • High voltage output alarm with visual indicator
  • 14.8V 5200mAh rechargeable lithium battery
  • CAT IV 600V safety rating for industrial environments



Product information

Everything you need to know

Technical Specifications

Rated voltage   UT513B

250V     <0.25MΩ: reference only

                 0.25MΩ～2.49GΩ: ±5%+5)

                 2.50GΩ～24.9GΩ: ±(10%+10)

                 25.0GΩ～100GΩ: reference only

500V     <0.50MΩ: reference only

                   0.50MΩ～4.99GΩ: ±(5%+5)

                   5.00GΩ～49.9GΩ: ±(10%+10)

                   50.0GΩ～200GΩ: reference only

1000V  <1.00MΩ: reference only

                   1.00MΩ～9.99GΩ: ±(5%+5)

                  10.0GΩ～99.9GΩ: ±(10%+10)

                  100GΩ～400GΩ: reference only

2500V  <2.50MΩ: reference only

                  2.50MΩ～24.9GΩ: ±(5%+5)

                  25.0GΩ～249GΩ: ±(15%+10)

                  250GΩ～1.00TΩ: reference only

5000V  <5.00MΩ: reference only

                   5.00MΩ～49.9GΩ: ±(5%+5)

                   50.0GΩ～499GΩ: ±(15%+20)

                   500GΩ～2.00TΩ: reference only

Capacitance test           NA

Output voltage stepping voltage range

250V     250V, 275V, 300V

500V     250V, 300V, 350V, 400V, 450V, 500V, 550V, 600V

1000V  500V, 600V, 700V, 800V, 900V, 1000V, 1100V, 1200V

2500V  1250V, 1500V, 1750V, 2000V, 2250V, 2500V, 2750V, 3000V

5000V  2500V, 3000V, 3500V, 4000V, 4500V, 5000V

DC voltage         30～1000VDC: ±(3%+5)

AC voltage         30～750VAC(50Hz/60Hz): ±(3%+5)

Current                0.01nA～3.5mA

Short-circuit current     about 3.5mA

Main features

PI test   √

DAR test              √

Timing measurement   √

Resistance Comparison             √

Voltage step      √

Voltage monitoring (of external object) Monitor the voltage of measured object and the discharge state after testing. If voltage is higher than 36V, it is forbidden to test for protecting the tester and the operator

Timer testing    Record testing time automatically. Timing range: 0s～99m and 59s

Data storage     999 set

USB interface (data transmission)         √

Bluetooth APP N/A        √

Low Battery indication √

Auto power off Around 15 minutes

Overvoltage category   CAT Ⅳ 600V
