UNI-T Authorized brand

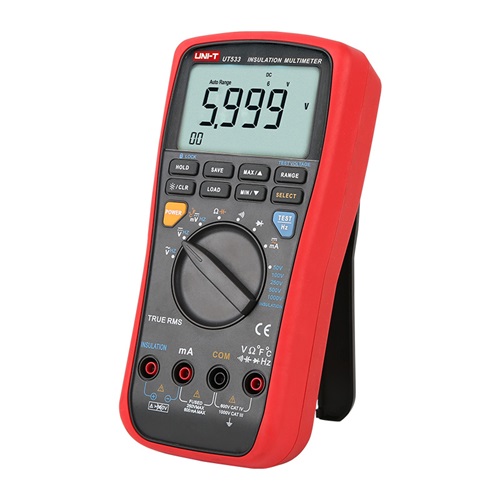

UNI-T UT533 Insulation Multimeter

SKU: UT0523
Rs. 20,900.00 MRP Rs. 22,550.00 Save Rs. 1,650.00 (8% off) Inclusive of GST-18%
In Stock (2 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add

UT533 insulation multimeter is a fully functional digital multimeter and digital insulation tester with RMS, widely used in industrial, laboratory, home and other Applications. It features AC and DC voltage, AC and DC current, resistance, capacitance, frequency and temperature, and also has 1000V testing voltage insulation resistance measurement function.

  • AC/DC voltage measurement
  • AC/DC current measurement
  • Insulation resistance measurement
  • Resistance & Capacity test
  • Frequency & Temperature test
  • 1000V output voltage
  • Double insulation design



Product information

Everything you need to know

Technical Specifications

Specifications Range   UT533

Insulation resistance   0.1MΩ~2GΩ     ±(5%+5)

Output voltage 50~1000V          –

AC voltage (V)   6V~1000V          ±(2%+3）

DC voltage (V)  6mV~1000V      ±(0.3%+4）

AC Current         60mA ~600mA ±(1.5%+2）

DC Current        60mA ~600mA ±(1.0%+2)

Resistance (Ω) 600Ω~40MΩ     ±(1.5%+3)

Capacitance (F)              10nF~100uF     ±(3%+5)

Frequency (Hz) 60Hz~1MHz     ±(0.1%+3)

Temperature(℃)             -40℃ ~ 537℃   ±(1%+10)

Features

Display count   5999

Diode & Continuity        √

Dual display      √

Auto/Manual range        √

Backlight            √

MAX/MIN            √

Low battery indication √

Auto power off √

Data hold            √

Category ratings             CAT III 1000V, CAT IV 600V

Certificates       CE/RoHS

Warranty
As per Brand policy

Recommended Uses

Used in industrial, laboratory, home and other Applications.
