When used please note:
(1) Test clips shall not directly clip in spark plug, should be caught in the connection of the spark plugs of insulation wire, in order to prevent the breakdown and causing a shock.
(2) To distance other high-voltage at least 2 inches apart, lest produce interference.
(3) HT25 leading line length 2.5 meters, the decay of up to 10,000:1.
Quantity
Dispatched (in Days): Same day dispatch
Minimum Order Quantity: 1 pcs
Country of Origin: N/A

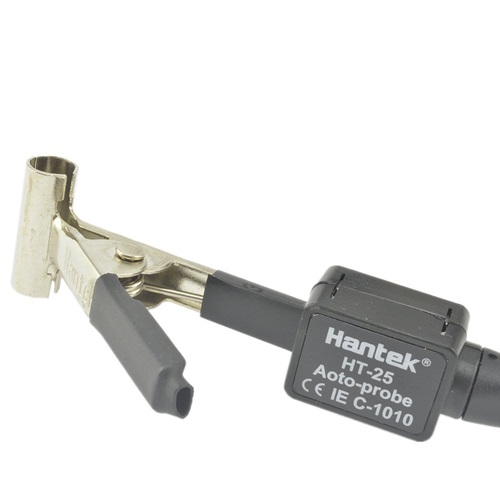

Type Auto Ignition Probe
Model HT25
Length 2.5m
Brand Hantek
Warranty: N/A
Can be used to test a spark ignition secondary overlapping wave, overlapping wave parameters, thus achieved the detection, the diagnosis engine ignition position, make each cylinder ignition voltage changing with time directly from the oscilloscope display.
Min Qty: 1 pieces
