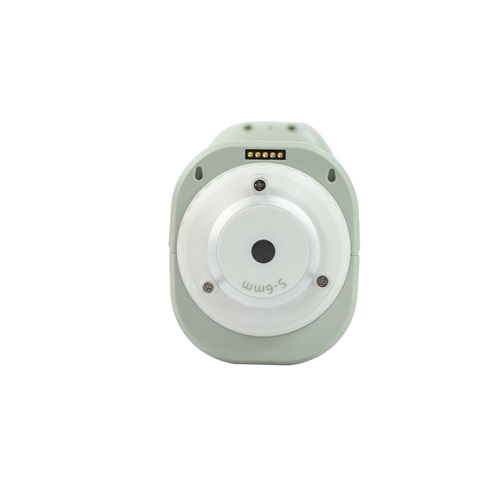

Product model DS-200
Measuring structure* D/8，SCI
Measurement ΔE*ab≤ 0.03
Display accuracy 0.01
Measuring aperture There are two types of stable type and smart type：Φ6mm，▽6mm
Color Spaces and Indices Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB, Color difference(ΔE*ab, ΔE*cmc, ΔE*94,ΔE*00),WI(ASTM E313-00,ASTM E313-73,CIE,ISO2470/R457, AATCC, Hunter, Taube Berger Stensby), YI(ASTM D1925,ASTM E313-00, ASTM E313-73), Blackness(My,dM),Color Fastness
SourceA,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83, TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2
Light source LED
Measurement observation method Visual
Calibration Manual calibration
Software support Andriod,iOS,Windows, Wechat app
Observer 2°，10°
Integrating sphere diameter 40mm
Standards CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Ways of spectral Nano-integrated spectral devices
Sensor Silicon photodiode array Dual 16-group
Wavelength interval 10nm
Wavelength range 400-700nm
Reflectance determination range 0-200%
Reflectance resolution 0.01%
Measurement method Single measurement, average measurement (2 to 99 measurements)
Measurement time Approx. 1 second
Interface USB， Bluetooth
Screen Screen Full colour screen, 2.4
Battery capacity 8000 continuous measurements on a single charge, 3.7V/3000mAh
Life of light 10 years and 1 million cycles
Language Simplified Chinese, English
Storage Instrument :10,000 data ; APP: mass storage
Warranty:
As per Brand policy
