Parameter LS220 Coating Thickness Gauge
Probe tip Ruby fixed
Measuring principle Fe:Hall Effect / NFe: Eddy current
Probe type Built-in integrated probe
Measuring range 0.0-5000μm
Resolution 0.1μm/1μm/10μm
Accuracy 0-3000μm: ≤±(3%H+2μm), H is the standard value
3000-5000μm: ≤±(5%H+2μm), H is the standard value
Unit μm / mil
Measuring interval 0.3s
Minimum measuring area Ø = 25mm
Minimum curvature Convex:5mm / Concave:25mm
Minimum substrate thickness Fe:0.2mm / NFe:0.05mm
Language Chinese, English, Russian, Turkish, Ukrainian, German
Display 128×48 dot matrix LCD
Power supply 2pcs of 1.5V AAA alkaline battery
Range of operation temperature -20℃-50℃
Storage temperature range -20℃-60℃

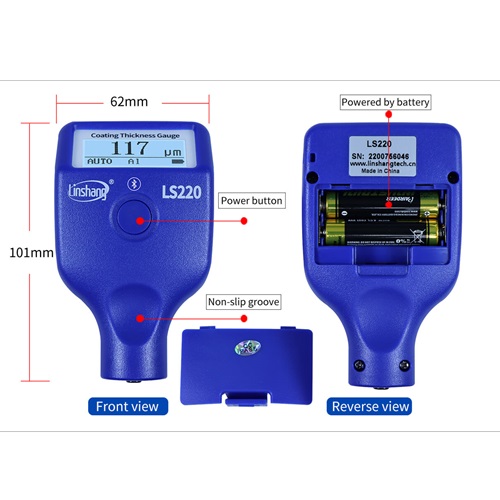

Host size 101*62*28 mm
Weight(with battery) 79 g
Warranty:
1 Year
Can identify metallic putty and iron galvanized car body as well as discovering iron, aluminum and non-ferrous substrate of a car
