Parameter Value
Probe tip Ruby fixed
Measuring principle Ferrous: Hall Effect / Non-ferrous: Eddy current
Probe type Integrated probe
Measuring range 0.0-5000μm
Resolution 0.1μm: 0μm - 99.9μm
1μm: 100μm - 999μm
0.01mm: 1.00mm - 5.00mm
Accuracy ≤±(3%H+2μm), H is the standard value
Unit μm / mil
Measuring interval 0.5s
Minimum measuring area Ø = 25mm
Minimum curvature Convex:5mm / Concave:25mm
Minimum substrate thickness Fe:0.2mm / NFe:0.05mm
Display 128×48 dot matrix LCD
Power supply 2pcs of 1.5V AAA alkaline battery
Operation temperature range 0℃-50℃
Storage temperature range -20℃-60℃

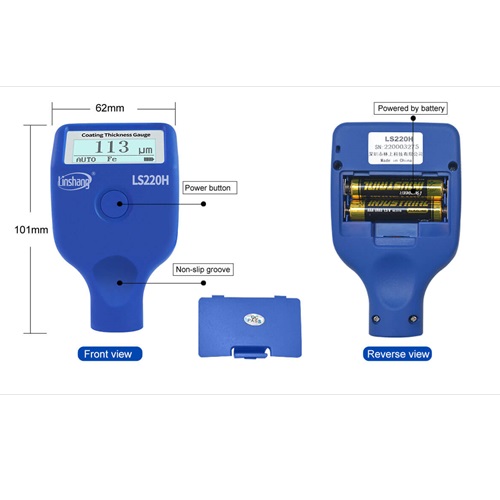

Gauge size 101*62*28 mm
Weight(with battery) 79 g
Warranty:
1 Year

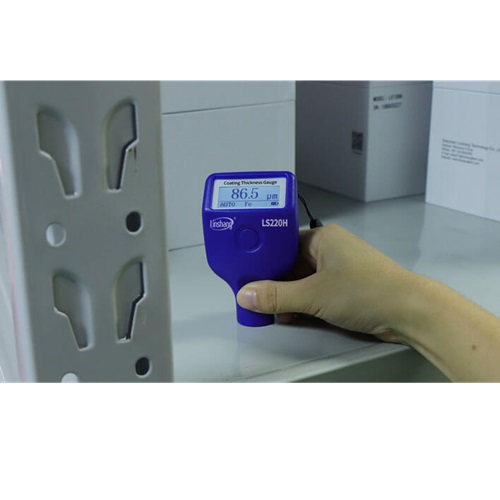

Tests the coatings on shelves, ferrous material, aluminum frame
