Resistance range 100.1kΩ~300.0kΩ/3uA 100Ω
10.01kΩ~100.00kΩ/3uA 10Ω
1.001kΩ~10.000kΩ/10uA 1Ω
100.1Ω~1000.0Ω/100uA 0.1Ω
10.01Ω~100.00Ω/1mA 0.01Ω
1.001Ω~10.000Ω/10mA 0.001Ω
100.1mΩ~1000.00mΩ/100mA 0.1mΩ
0.001mΩ~100.00mΩ/1A 0.01/0.001mΩ
Features
Functions Measuring the resistance of all kinds of wires, switches, connectors, contactors, fuses, coils, transformer windings, metal riveting, and so on.

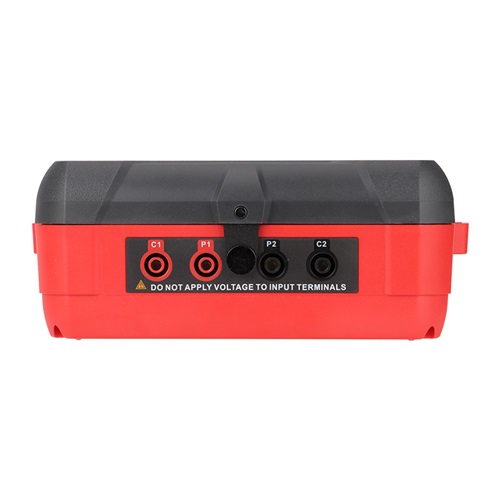

Measurement methods Four-wire method
Test current ≤1A
Open circuit voltage ≤4.2V
Input protection ≤36V AC/DC
Power consumption measurement power: ≤8W
Measuring speed about 2times/s
Automatic power off 15 minutes if no operation
storage 500 set

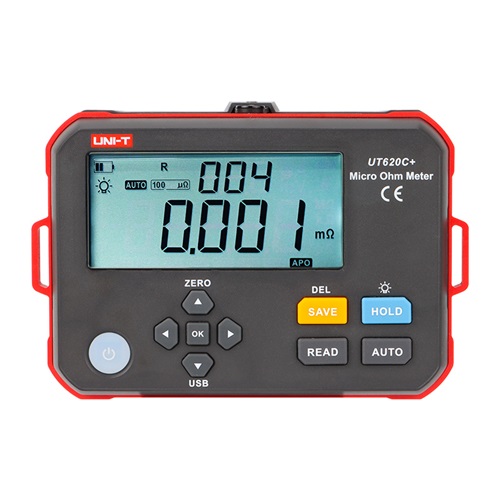

display type segment LCD
USB interface Type C
Backlight Yes
Low battery indication Yes
IP rating IP54
Certificate CE, RoHS
General Characteristics
Power supply DC 3.7V 3200mAh lithium battery
Product Colour Black + Red
Warranty:
As per Brand policy
Widely used in telecommunications, power distribution systems, new energy vehicles, petrochemicals, industrial plant grounding systems, etc.
