UNI-T Authorized brand

UNI-T UT620C+ Micro Ohm Meter

SKU: UT620C
Rs. 19,950.00 MRP Rs. 24,750.00 Save Rs. 4,800.00 (20% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece
Currently out of stock

Enter your email and we will notify you when this product is available.

UT620C+ can measure a wide range of resistance values with high precision. It is a highly accurate portable resistance meter capable of measuring resistance levels from micro-ohm to mega-ohm. It is ideal for testing and maintenance of large equipment, such as measuring winding and welding resistance of large motors and stators for hybrid and electric vehicles. Widely used in telecommunications, power distribution systems, new energy vehicles, petrochemicals, industrial plant grounding systems, etc.

  1. Micro-ohm level measurement, resistance measurement range: 0.001mΩ～300.0KΩ
  2. Resolution up to 1μΩ
  3. The accuracy can reach ±0.1%FS
  4. The measurement current ≤ 1A
  5. 500 groups of data storage
  6. Large LCD display
  7. Automatic shutdown, longer standby time
  8. The lithium battery can be used repeatedly
  9. Compact design, easy to carry and operate
Product information

Everything you need to know

Technical Specifications

Resistance range        100.1kΩ~300.0kΩ/3uA          100Ω

                                    10.01kΩ~100.00kΩ/3uA         10Ω

                                   1.001kΩ~10.000kΩ/10uA       1Ω

                                   100.1Ω~1000.0Ω/100uA         0.1Ω

                                    10.01Ω~100.00Ω/1mA            0.01Ω

                                   1.001Ω~10.000Ω/10mA          0.001Ω

                                   100.1mΩ~1000.00mΩ/100mA            0.1mΩ

                                   0.001mΩ~100.00mΩ/1A        0.01/0.001mΩ

Features

Functions           Measuring the resistance of all kinds of wires, switches, connectors, contactors, fuses, coils, transformer windings, metal riveting, and so on.

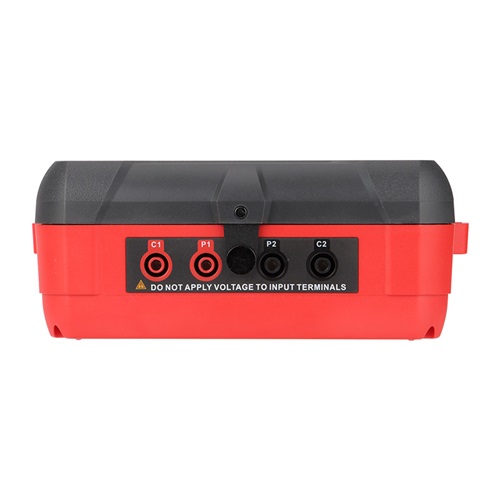

Measurement methods              Four-wire method

Test current       ≤1A

Open circuit voltage     ≤4.2V

Input protection              ≤36V AC/DC

Power consumption      measurement power: ≤8W

Measuring speed            about 2times/s

Automatic power off     15 minutes if no operation

storage 500 set

display type       segment LCD

USB interface   Type C

Backlight            Yes

Low battery indication Yes

IP rating               IP54

Certificate         CE, RoHS

General Characteristics

Power supply    DC 3.7V 3200mAh lithium battery

Product Colour                Black + Red

Warranty
1 Year

Recommended Uses

Widely used in telecommunications, power distribution systems, new energy vehicles, petrochemicals, industrial plant grounding systems, etc.
