UNI-T Authorized brand

UNI-T UT3513+ Benchtop Micro Ohm Meter

SKU: UT3513
Rs. 43,450.00 MRP Rs. 46,750.00 Save Rs. 3,300.00 (8% off) Inclusive of GST-18%
In Stock (1 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add

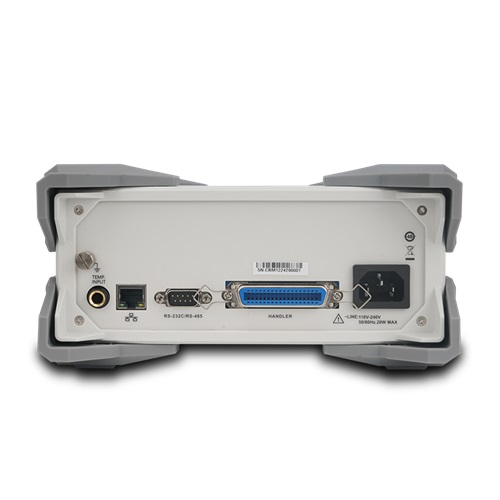

The UT3510+ series of benchtop Micro Ohm Meter includes the UT3513+ and UT3516+ models. 4.3-inch LCD display. With high precision, high resolution and high-speed measurement characteristics, with the highest accuracy of 0.05%, the minimum resolution of 1 μΩ. UT3513 + and UT3516 + standard RS-232C, RS485, LAN port and HANDLER communication interface, support for SCPI and MODBUS RTU protocols, and can be with the computer, PLC or WINCE device communication, and efficiently complete the remote control and data acquisition functions.



  • 4.3-inch TFT LCD
  • Accuracy of 0.05 %, with 22,000 reading
  • High resolution of 1 μΩ, with 4 1/2-digit display
  • UT3513+ measurement range: 1 μΩ-20 kΩ
  • Various test combinations: R, LPR, and T
  • Low voltage (LRP) test mode for effective protection of the DUT (Device Under Test)
  • Temperature correction (TC)
  • Temperature conversion (∆t)
  • USB flash drive for saving data and screenshots
  • Comparator with sorting and beeper function
  • Supports data storage and browse
  • Maximum test speed: 10 ms/time
  • Built-in temperature correction interface



Product information

Everything you need to know

Technical Specifications

MODEL UT3513+

MEASURING RANGE 1μΩ~20kΩ

MAX. TEST RATE 100rdgs/s

CONNECTIVITY RS232，RS485，HANDLER，LAN

SIZE ½ 2U

DISPLAY 4.3'' TFT LCD

Warranty
As per Brand policy

Recommended Uses

Industrial uses
