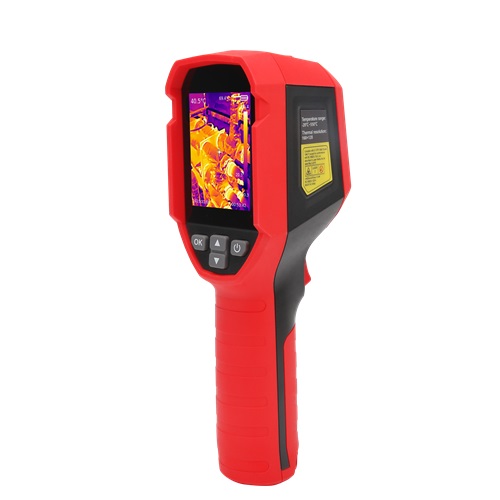

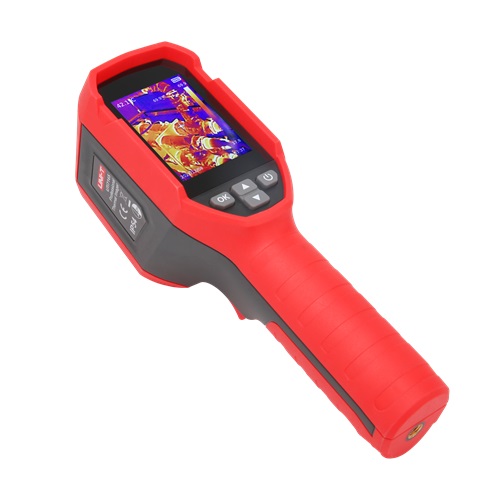

UNI-T UTi716S Thermal Camera

UTi716S is equipped with a 12μm infrared detector with 160×120 pixels and 2MP digital camera, combined with Super resolution function and self-developed T-Mix auto-adaptive dual-light fusion algorithm technology for generating high-definition IR images with visible details. Its extended temp. measurement range and the built-in LED light & laser pointer meet more application scenarios. 4-button and light-weight design make inspection work easily. Widely used in HVAC, Automotive inspection and electric utility.

Features:

160×120 pixels / 12μm infrared detector
Temp. measurement range from -20℃ to 550℃
2MP digital camera
Self-developed T-Mix auto-adaptive dual-light image fusion algorithm technology
Super resolution is supported
Multi-languages OS
With LED light & Laser pointer
IP54 and withstand the drop of 2m height

Technical Documents - 1

Rs. 30,000.00 /each Save Rs. 6200 (21% Off)

Rs. 23,800.00 /each (Incl GST-18%)

Quantity

Brand
Authorization
In-house Service center
Total Brand Orders	2194

Dispatched (in Days): 2 days

Minimum Order Quantity: 1 pcs

Country of Origin: N/A

5 In stock Need more?

Warehouse location - Delhi, India.
Delivery - 2-6 Business Days

Technical Specifications

Display 2.4” TFT (320×240)

IR resolution (Pixels) 160×120

Super resolution (Pixels) √(320×240)

Spectral range 8~14µm

Pixel size 12µm

Frame rate ≤25Hz

Thermal sensitivity (NETD) ≤50mK

Focus Focus Free

Field of view (FOV) 40°(H) × 30°(V)

Spatial resolution (IFOV) 4.62mrad

Temperature measurement range -20℃~550℃

Accuracy ±2℃ or ±2% whichever is greater

Warranty: As per Brand policy

Uses

Widely used in HVAC, Automotive inspection and electric utility.

Technical Specifications
Uses

Display 2.4” TFT (320×240)

IR resolution (Pixels) 160×120

Super resolution (Pixels) √(320×240)

Spectral range 8~14µm

Pixel size 12µm

Frame rate ≤25Hz

Thermal sensitivity (NETD) ≤50mK

Focus Focus Free

Field of view (FOV) 40°(H) × 30°(V)

Spatial resolution (IFOV) 4.62mrad

Temperature measurement range -20℃~550℃

Accuracy ±2℃ or ±2% whichever is greater

Warranty: As per Brand policy

Widely used in HVAC, Automotive inspection and electric utility.
