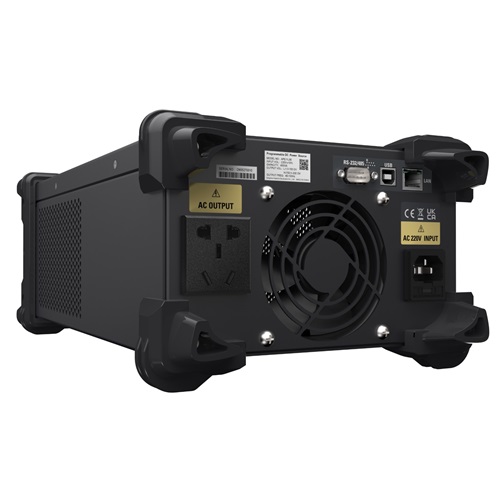

Basic Parameters APE11L500
Output Function Simulated voltage by country
Isolation Function Built-in isolation transformer
Wiring Mode Input: single-phase two-wire Output: single-phase two-wire
Number of output phases Single-phase two-wire + PE
Output Mode single-phase standard sinusoidal output
Output Voltage
Low:0-150.0V Rated voltage:110.0V;
High:150.0-300.0V Rated voltage:220.0V;
High lock:0-300.0V Rated voltage:220.0V
Voltage Setting Accuracy Accuracy:≤0.05% Resolution:0.1V
Rated Current Low 4.5A
High 2.3A
Output Power 500VA
Output Frequency 45-65Hz,100Hz，120Hz， 200Hz， 240Hz
Frequency Setting Accuracy Accuracy:≤0.05% Resolution:0.1V
Frequency Stability ≤0.05%
Voltage Distortion <1.5% (linear load)
Reaction Time ≤2ms
Voltage Mutation Response Time ≤20ms
Peak Factor 1.41±0.1
Source Voltage Effect ≤1%
Load Effect ≤1%
Warranty:
1 Year
Industrial/ Professional use
