HTC Instruments

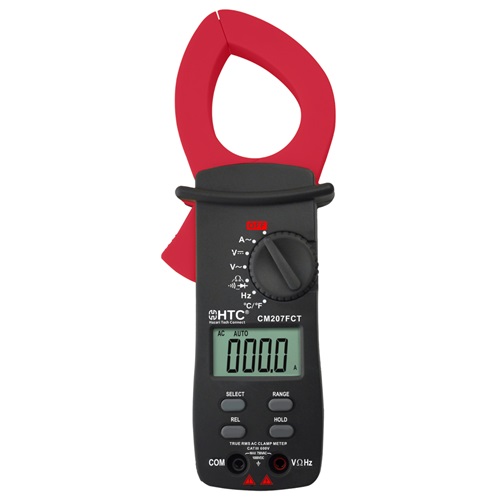

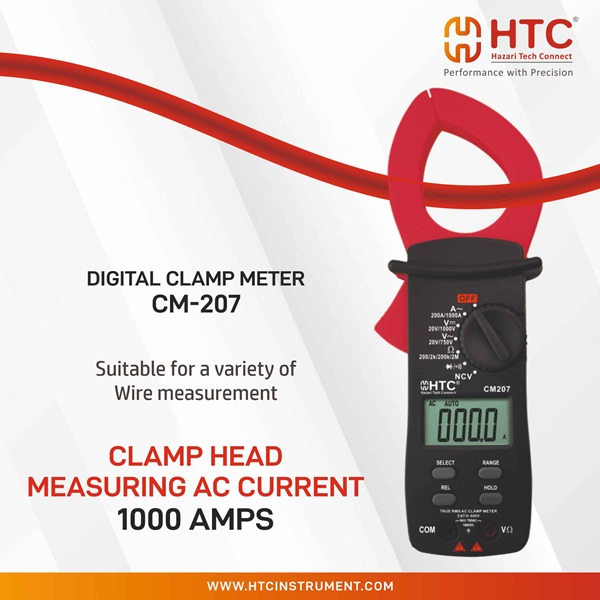

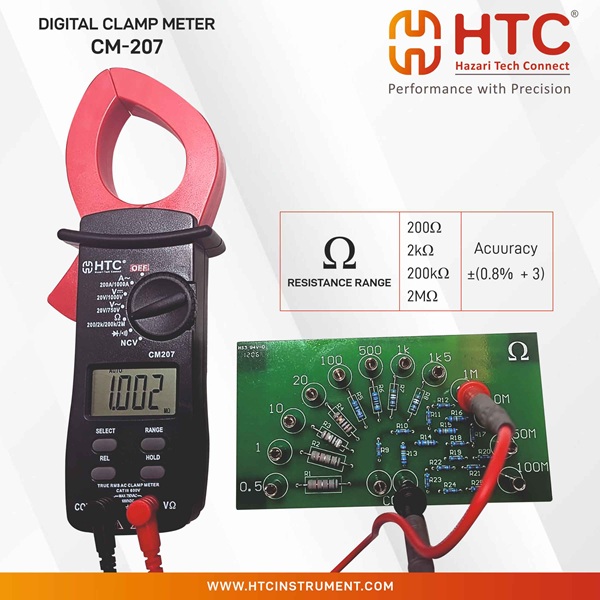

HTC Instruments CM-207 Clamp Meter

SKU: CM0207
Rs. 830.00 MRP Rs. 1,100.00 Save Rs. 270.00 (25% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.

Features:

  • 3½ DIGIT
  • 1,999 COUNT
  • JAW OPEN : 40MM
  • LARGE LCD DISPLAY
  • TRUE RMS
  • DATA HOLD
  • FUNCTION PROTECTION
  • REL TEST
  • AUTO POWER OFF
  • AUTO / MANUAL RANGE
  • Power : 3V x 2 AAA
  • Dimension : H225 x W55 x D32 mm
  • Weight : Approx. 200 g. Including Battery

Accessories : Test leads, Manual,White Box, Bag & Battery.

Product information

Everything you need to know

Technical Specifications

DC Voltage

Range 20V-1000V

Accuracy ±(0.5% + 5)

AC Voltage

Range 20V-750V

Accuracy ±(1.0% + 5)

AC Current

Range 200A- 1000A

Accuracy ±(3.0% + 5)

Continuity Test Less than 30Ω ± 10Ω

Low Battery Indicator   Approx less than 2.4V

Auto Power Off About 15 Minutes

Input Impedance            10Ω

Sampling Rate 3 Times/S

AC Frequency Response      Current 50-60Hz

Voltage 50-400Hz

Operation Method     Auto or Manual Range

Function Protection      Yes

Warranty
As per Brand policy

Recommended Uses

Industrial uses
