HTC Instruments

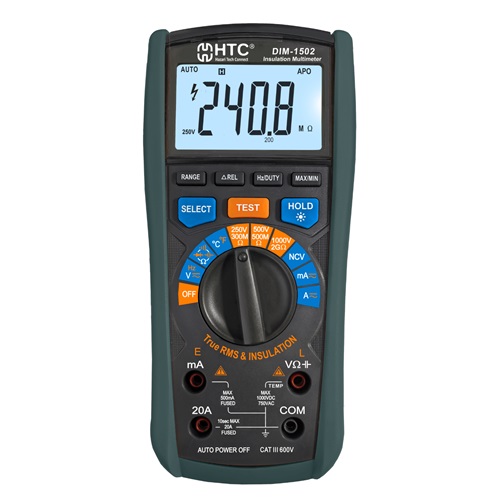

HTC Instruments DIM-1502 Digital Insulation Multimeter

SKU: DIM502
Rs. 3,390.00 MRP Rs. 4,200.00 Save Rs. 810.00 (20% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.

Features:

  • 3 5/6 Digits
  • 5,999 Count
  • True Rms
  • Insulation Resistance
  • Duty Cycle
  • Data Hold
  • Dual Integral A/D Conversion Integrated Circuit
  • Dimension : H200 x W92 x D50  mm Weight :  Approx. 480 Gsm.

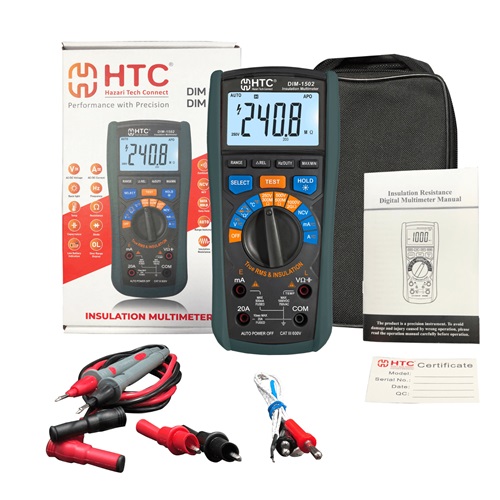

Accessories : Test Lead, Shockproof Cover, Carry Case, TP01 Temperature Probe   Manual &  Battery.

Product information

Everything you need to know

Technical Specifications

DC VOLTAGE

RANGE   RESOLUTION   ACCURACY

600mV       0.1 m

6V          1mV

60V        10mV    ±(0.5%+5 digits)

600V     100mV

1000V  1V          ±(1.0%+5 digits)

AC VOLTAGE (TRUE RMS)

RANGE    RESOLUTION ACCURACY

6V          1mV      ±(0.8%+10 digits)

60V        10mV

600V     100mV  ±(1.0%+10 digits)

750V     1V

Frequency 50kHz Switch to display ACV ±(0.5%+4 digits)

Resistance

Range 600Ω-60MΩ

Resolution 0.1Ω- 10kΩ

Warranty
As per Brand policy

Recommended Uses

Industrial uses
