Wiremap:
Cable types: CAT5/CAT6
Cable sequence and fault testing: Normal, open circuit short circuit, cross,etc
STP/UTP: Both compatible
Max range: 600m / 1,968ft
QC Test:
Test type: 8P
Response speed: No longer than 1 second
Minimum recognition: 10cm / 3in
Length:
Test line: CAT5 & 6
Test range: 2.5 - 200m /8 - 656ft
Accuracy: ≤20m±4.6m; 20-100m ±2.4m; >100m±3.2m
Scan:
Cable type: CAT5 & 6
Max signal voltage: 5V ± 1.0VP-P
Frequency: 455KHz
Dual mode: Analog / digital mode
Max range: 600m / 1,968ft
PoE:
Voltage test range: DC 5-60V
Power supply core jumper mode: End jumper, middle jumper, 8-core power supply, unknown.
PSE type: Non-standard, IEE802.3at/af
Port Blinks
Full-duplex/ half-duplex recognition
Auto-negotiation/ non-auto-negotiation
Switch type: 10m/100m/1000m

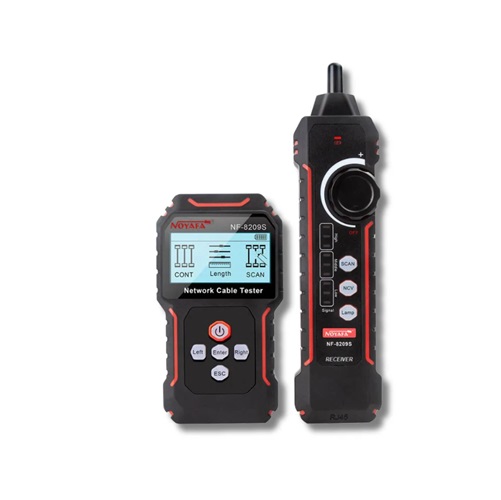

Transmitter:
LCD Display: 180*64 with backlight
Language: Chinese/English
Ports: RJ45 * RJ11
Power supply: 3.7V 1400mAh polymer lithium battery
Low battery power indication: yes
Auto-off: 15/30/60min or off
Voltage protection: DC60V
Maxi working current: ≤200mA
Size: 125*70*32mm
Receiver:
Adjustable scan strength: Yes
NCV: AC70V - 1000V 50/60Hz
Voltage protection: DC 60V
Maxi working current: ≤200mA
Ports: RJ45
Voice prompt: yes
Headphone jack: yes
LED: Power indication & LED lighting
Power supply: 3.7V 1400mAh polymer lithium battery
Size: 198*50*30mm
Warranty:
As per brand policy
