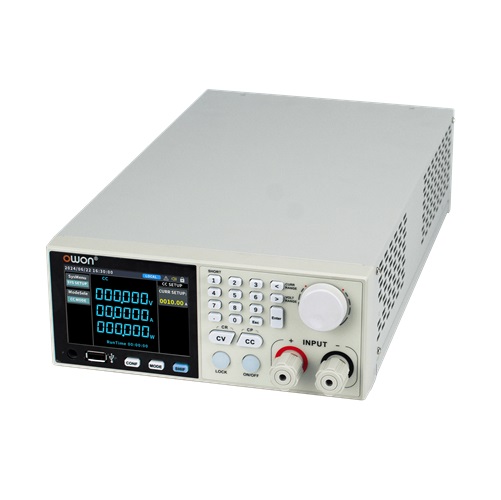

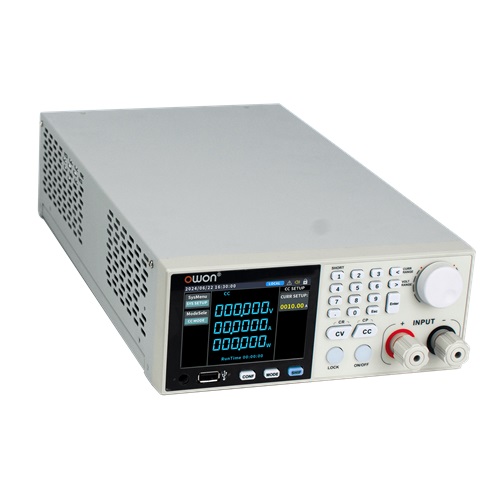

OWON OEL8512TV DC Electronic Load -150V, 400W

SKU: OEL8522
Rs. 45,600.00 MRP Rs. 48,300.00 Save Rs. 2,700.00 (6% off) Inclusive of GST-18%
In Stock (10 available) Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Quantity to add



  • 1/2 2U standard rack size, suitable for rack-mount use.
  • 3.9-inch TFT color LCD display
  • Measurement range: 0-150V/0-40A, 400W
  • Four operation modes Supports: constant voltage, constant current, constant resistance, constant power
  • Dynamic current testing supports, with dynamics up to 10kHz
  • High-resolution voltage and current readback: 1mV/0.1mA
  • Remote compensation supports.
  • Multiple protections: overvoltage, overcurrent, overpower, overheat, etc.
  • Standard RS232 interface, supports SCPI protocol.



Product information

Everything you need to know

Technical Specifications

Voltage   0-150V

Rated Output Current  0-40A

Range W 0-400

Resolution mW 10

Accuracy 0.1%+0.1%FS

Protection

Over power Protection W >OPP, 10ms delay protect

Over voltage Protection V >OVP, 0.1ms delay protect

Over current Protection V >OCP, 0.1ms delay protect

Over temperature 85℃

Short

CC mode A >40

CV mode V 0

CR mode mΩ 50

AC Parameters

Voltage Range V 110V ±10% or 220V ±10%

Frequency Range Hz 50/60Hz

Interface

RS-232 SCPI support.

General

Heat dissipation Internal intelligent fan with forced air cooling

Safety Complies with European EMC Directive 89/336/EEC for Class A testing and measurement products

Withstand voltage (output to ground) 500V/DC/1mA

Withstand voltage (Input to ground) 1.5KV/AC/5mA

Dimension(LWH) 375mm*215mm*88mm

Weight kg 4

Warranty
1 year

What's in the Box

Includes power cord, spare fuse and user manual.

Application

For validating power supplies, testing batteries, or evaluating chargers
