FNIRSI FNAC-28 2-IN-1 Type-C USB Tester

SKU: FNAC28
Rs. 1,900.00 MRP Rs. 2,500.00 Save Rs. 600.00 (24% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.

The FNAC-28 USB Tester is a multifunctional USB voltage and current meter, as well as a quick charge trigger device for mobile communication terminals.

Features:

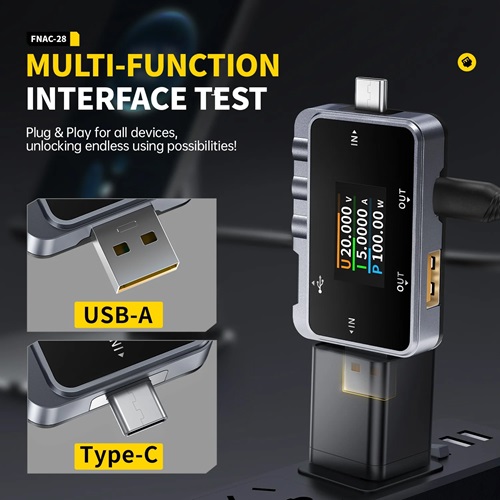

  • It features a full-color, ultra-wide viewing angle TFT LCD display and integrates multiple interfaces, including USB-A and Type-C male and female connectors, ensuring broad compatibility.
  • Utilizing an external 16-bit ADC chip, it offers high measurement accuracy.
  • This device can measure the power supply or consumption of USB interfaces, phone chargers, USB drives, and other products.
  • It can also measure phone charging power, and the input and output conditions of power banks, and perform quick charge protocol testing for chargers.



Product information

Everything you need to know

Technical Specifications

Brand FNIRSI

Model FNAC-28

Screen 1.06 inch color screen

Monitored Voltage 4~24V

Monitored Current 0~6.5A

Monitored Power 0~156W

Protocol Detection

① QC2.0: 5V/9V/12V/20V

② QC3.0: 3.4-20V

③ FCP: 9V/12V/20V

④ SCP: 5.5-6.0V

⑤ AFC: 9V/12V

⑥VOOC/WARP: 20V

⑦ SVOOC 1.0: Support

⑧ SVOOC 2.0: Support

Cable Resistance Support

Detect DASH Cable Support

Soft DASH Cable Support

Soft APPLE 2.4A Support

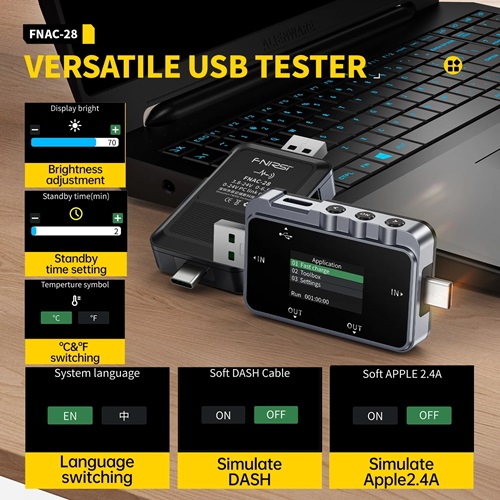

Brightness Adjustment Support

Standby Time Setting Support

Temperature symbol ℃ and ℉ switch

Language Chinese and English

Firmware Upgrade Support

Dimensions 73×36×12mm

Weight 21g

Warranty
As per Brand policy

Application

Multifunctional USB voltage and current meter, as well as a quick charge trigger device for mobile communication terminals.
