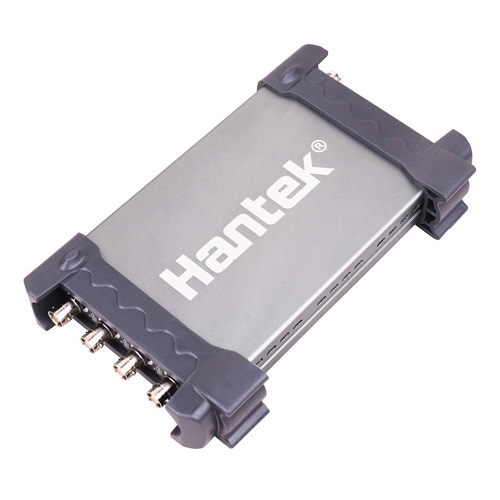

Hantek 6254BD Oscilloscope- 250 Mhz 4 Channel

Features:

• 4CH oscilloscope & function/Arb. waveform generator.
• The performance of this model could even better than the performance of benchtop oscilloscope. It has 4 independent analog channels, 1GSa/s real-time sampling rate, 2mV-10V/DIV input sensitivity, and 250MHz bandwidth.
• Function/Arbitrary Waveform Generator: 200MSa/s DDS, 12bits of vertical resolution, built-in variety of standard waveforms, arbitrary waveform easy to edit, which is convenient to reappear sensor and other irregular signal.
• Pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform record and replay function. The operation interface is similar to banchtop oscilloscope, easy to operate with high cost performance.
• USB2.0 Interface, plug and play device.
• Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.
• Fit for the portable computers, table PC, and repairing/fixing of production line. Suitable for business trip use.
• Software support: Windows10, Windows 8, Windows 7
• The waveform data could be output to EXCEL,BMP,JPG as time and voltage category.
• More than 20 kinds of automatic measurement function, PASS/FAIL Check function, fit for engineering application.
• Serial bus triggering and decode, Bus protocol information can be quickly and intuitively displayed in table form.
• Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
• FFT spectrum analyzer
• One computer could connect with multiple oscilloscopes, expand the channel number easily.
• Provide secondary development library DLL; Provide Labview\VB\VC developing examples.

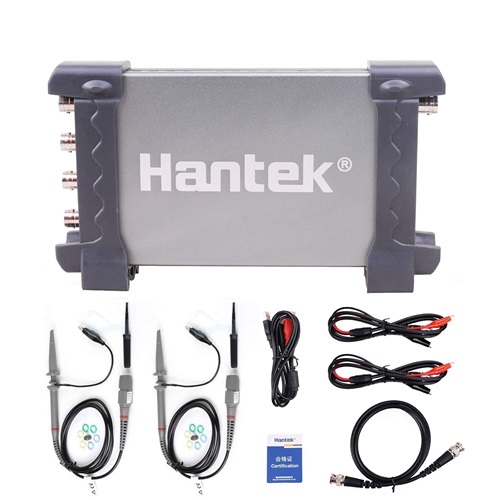

Standard accessories:

• BNC to BNC cable - 1PC
• alligator clip line - 2PCs
• passive probe - 2PCs
• USB cable - 1PC
• CD burned with Labview/VC/VB/QT development examples - 1PC
