Brand FNIRSI

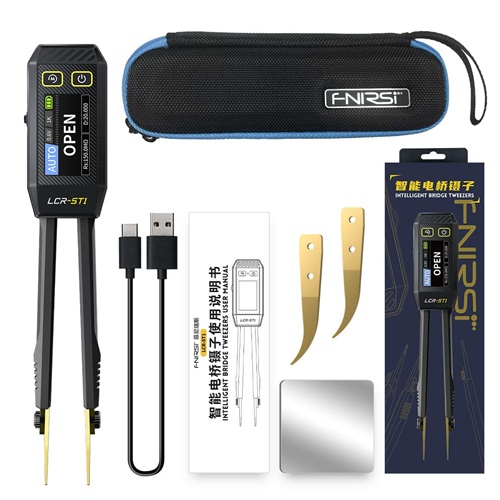

Model LCR-ST1
Capacitance Range 1pF-22mF
Inductance Range 1μh-10H
Resistance Range 10mΩ-10MΩ
Diode On voltage 0.7V

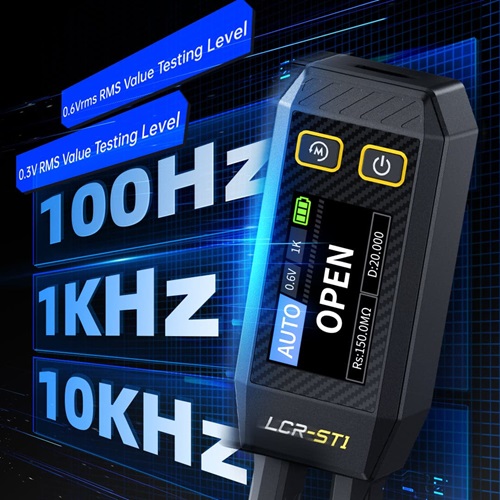

Frequency Test 100Hz, 1kHz, 10KHz
Level Test 0.3V, 0.6V RMS
Parameter Display ESR, D value, Q value, Z value, X value
Display 1.14" color screen
Charging Interface Type-C, 5V/A
Power Supply 250mAh lithium battery
Auto Recognition Measurement Support
Replaceable Tweezer Head Support
Auto Shutdown Support
Data Hold Support
History Record Connect to PC to view and export
Language English, Chinese
Size 28x19x150mm
Weight 41g
Warranty:
As per Brand policy
