FNIRSI Authorized brand

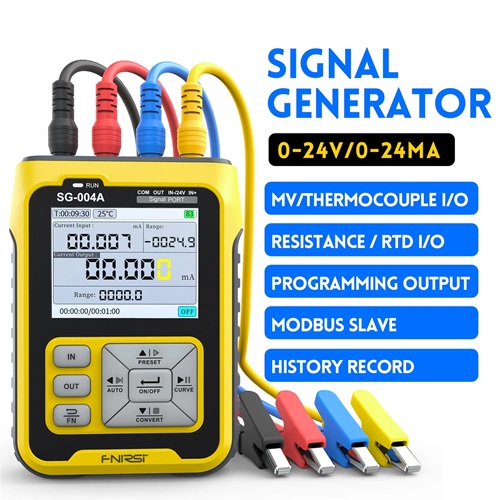

FNIRSI SG-004A Multi-functional Calibrator

SKU: SG004A
Rs. 12,800.00 MRP Rs. 14,500.00 Save Rs. 1,700.00 (12% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.



  • ≤0.2% Error
  • Engineering quantity / signal value
  • Real-Time curve record view
  • 2.4"TFT Full Colour HD display with backlight
  • Designed for industrial control industry
  • stable appearance design.
  • Supports voltage, current, frequency, thermocouple, and other signal modes for both output and input.
  • Provides support for independent 24V power supply
  • Offers programming mode for customization
  • Facilitates real-time curve visualization
  • Allows for historical data recording
  • Supports MODBUS communication protocol
  • Enables seamless firmware upgrades
  • Incorporates other powerful functions for enhanced functionality



Product information

Everything you need to know

Technical Specifications

- Model Number: FNIRSI SG-004A

1. Current (mA):

- Range: 0~24mA

- Accuracy: ±(0.02%+0.003)

- Resolution: 0.001mA

- Load Resistance: 100Ω

2. Voltage (V):

- Range: 0~24V

- Accuracy: ±(0.02%+0.003)

- Resolution: 0.001mA (This might be an error. Should it be 0.001V instead?)

- Load Resistance: 500KΩ

3. Passive (XMT):

- Range: 0~24mA

- Accuracy: ±(0.02%+0.003)

- Resolution: 0.001V

- Load Resistance: 100Ω

4. 24V Loop:

- Range: 0~24mA

- Accuracy: ±(0.1%+0.005)

- Resolution: 0.01mA

- Load Resistance: 100Ω

5. Frequency (Hz):

- Range: 0~9999Hz

- Accuracy: ±2%

- Resolution: 5 digits

- Impedance: 1MKΩ

6. Millivolt (mV):

- Range: -10~100mV

- Accuracy: ±(0.03%+0.03)

- Resolution: 0.01mV

- Load Resistance: 2KΩ

Warranty
As per brand policy

Application

Support voltage, current, frequency, thermocouple and other signal mode output and input.
