FNIRSI Authorized brand

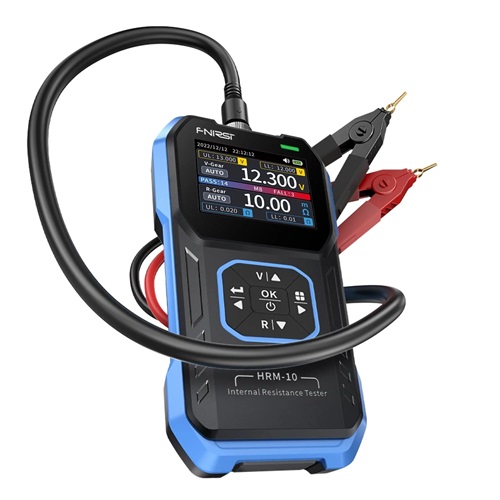

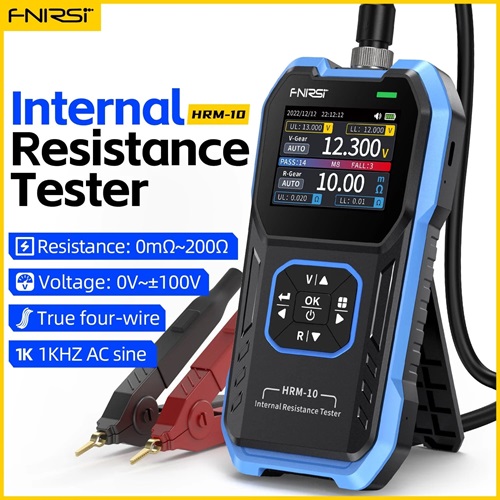

FNIRSI HRM-10 Battery Voltage Internal Resistance Tester

SKU: HRM010
Rs. 4,599.00 MRP Rs. 6,800.00 Save Rs. 2,201.00 (33% off) Inclusive of GST-18%
Out of stock Delivery 2-6 days MOQ 1 piece Technical datasheet (PDF)
Currently out of stock

Enter your email and we will notify you when this product is available.

FNIRSI "HRM-10" is our company's first handheld high-precision battery internal resistance meter. It is a true four-wire measurement internal resistance meter, designed with precision, convenient to carry. The device can automatically test internal resistance and voltage values simultaneously, with measurement results displayed on the screen. Users can also manually adjust the voltage and resistance range. The product features a sorting mode, automatically filtering the good and bad batteries based on user-set thresholds. It also supports historical records and exporting data tables of historical measurements.

Product information

Everything you need to know

Technical Specifications

Model Number HRM-10

Type Vehicle Battery Tester

DIY Supplies ELECTRICAL

Brand Name FNIRSI

Origin Mainland China

Voltage measuring range 0 ~ ±100V (DC)

Resistance measuring range 0 ~ 200Ω

Voltage gear Auto, 1V, 10V, 100V

Resistance gear Auto, 20mΩ, 200mΩ, 2Ω, 20Ω, 200Ω

Accuracy ±0.5%

Signal frequency AC 1Khz

Battery 1000mAh lithium battery

User calibration Support

Sorting mode Support

History record Support

Recorded data export Support

Working environment -10℃ ~ +45℃

Storage environment -20℃ ~ +80℃

Relative humidity <80%

Weight 225g

Warranty
As per brand policy

Application

Industrial uses
