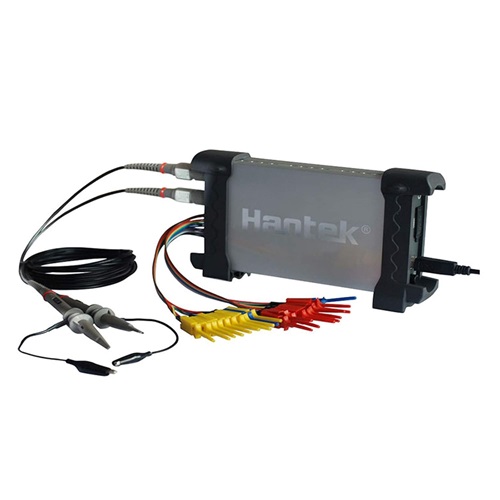

Model Hantek6022BL
Oscilloscope Features
Bandwidth 20MHz
Channel 2(Digital)+16(Logic)
Sample Rate 48MSa/s
Memory Depth 1M
Rise Time 17.5ns
Time Base Precision ±50ppm
Time Base Range 1ns/div-5000s/div (Step by1-2-5)
Input Impendence 1MΩ 25pF
Input Sensitivity 20mV/div～5V/div
Vertical Resolution 8Bit
Vertical Position Range 20mV ~ 5V/div @ x1 probe; 200mV ~ 50V/div @ x10 probe.
2V ~ 500V/div @ x100 probe; 20V ~ 5KV/div @ x1000 probe
DC Accuracy ±3%
Trigger Type Edge
Trigger Source CH1, CH2
Math +,-,x,÷,FFT, Invert
Cursor Measurement Cross, Horizontal, Vertical
Auto Measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Mean, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, +Duty Cycle, -Duty Cycle
Logic Analyzer Features
Channel 16
Max. Impendence 1MΩ(C=7.5pF)
Max. Voltage 0V~5.5V
Max. Sample 48M
Bandwidth 10MHz
Compatible Input TTL, LVTTL, CMOS
Memory Depth 1M/CH
Power USB Port
Dimensions 200mm x100mm x 35mm
Weight 0.3KG

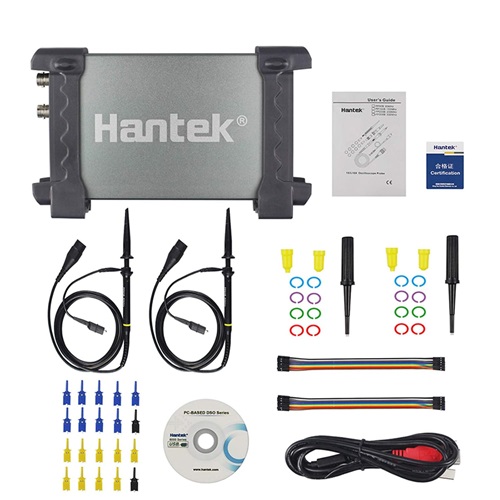

Standard Probe 2 x PP80B
Warranty:
1 Year
