Technical Specifications

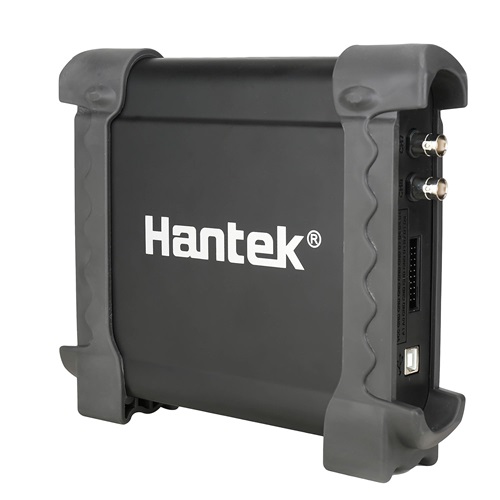

Model   Hantek1008C

Analog Channel              8

Input Impedance            Resistance: 1MΩ

Input Sensitivity              10mV/div to 5V/div

Input Coupling DC

Resolution         12 bits

Memory Depth 4K

Max. Input          400V (DC+AC Peak)

Real-Time Sampling Rate           2.4MSa/s

Time BaseRange             1ns/div to 20000s/div(1-2-5sequences)

Time Base Precision     ±50ppm

Trigger Source  CH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8

Trigger Mode     Edge

X-Axis Input       CH1

Y-Axis Input       CH2

Voltage Measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot

Time Measurement       Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

Cursors Measurement Horizontal, Vertical, Track, Auto Measure Modes

Waveform Signal Process          +,- , x,÷, FFT, Invert

Voltage Range  10mV to 5V/div @ x 1 probe

                                100mV to 50V/div @ x 10 probe

                                10V to 5000V/div @ x 1000 probe

                               100V to 50000V/div @ x 10000 probe

                               200mV to 100V/div @ 20:1

Current Range 100mA to50.0A/div @ CC65(20A)

                                1000mA to500.0A/div @ CC65(65A)

                                1A to100.0A/div @ CC650(60A)

                                1A to200.0A/div @CC1100(100A)

                                10A to2000.0A/div @CC1100(1100A)

FFT        Rectangular, Hanning, Hamming, Blackman Window

Math     Addition, subtraction, multiplication, division

Interface             USB 2.0(Full Speed)

Power   No need extra power supply

Size       190 x 167 x 35 (mm)

Weight 0.63kg

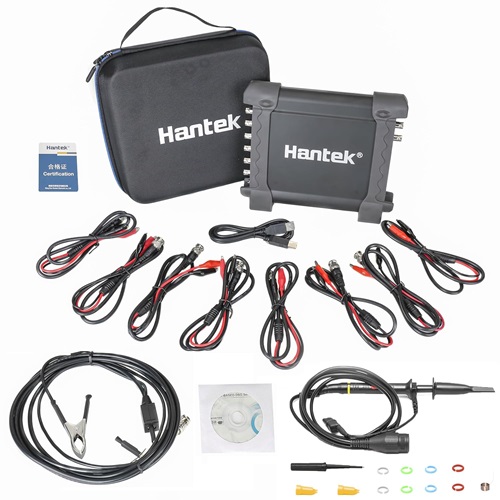

High pressure ignition probe     1

Output Level    LVTTL

Frequency Range           0-250kHz

Warranty: 1 Year
