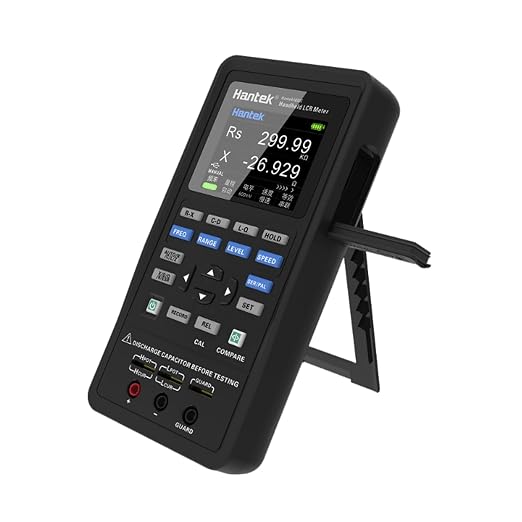

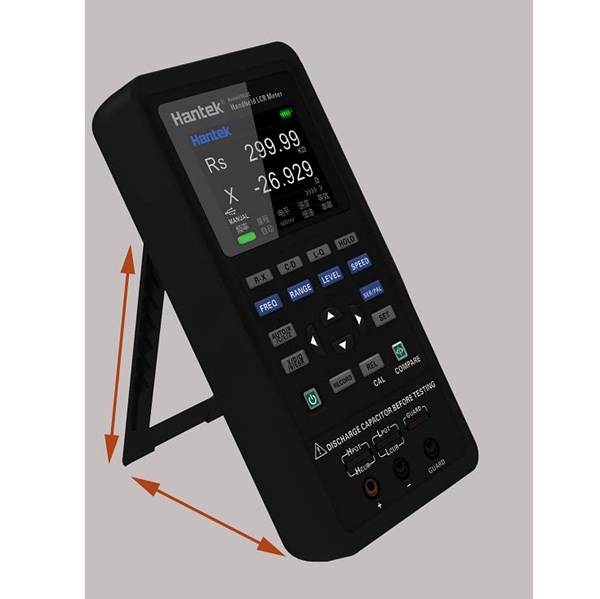

Model Hantek1833C
Test frequency 100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz, 40kHz, 50kHz, 75kHz, 100kHz
Accuracy 0.30%
Equivalent Circuit series, parallel
Test level 0.6Vrms, 0.3Vrms
Measurement way manual, auto
Display screen 2.8 inch TFT LCD
Measurement parameters principal parameter: L/C/R/Z deputy parameter: X/D/Q/θ/ESR
Principle parameter L/C/R/Z
Deputy parameter X/D/Q/θ/ESR
Inductance Measurement range (L) 0-2000H
Capacitance Measurement range (C) 0-20mF
Resistance Measurement range (R) 0-20MΩ
Measurement speed high speed (4 times/s), intermediate speed(twice/s), low speed(once/s)
Reset function open circuit calibration, short-circuit calibration
Test terminal configuration 3 terminal, 5 terminal
General feature standard with 1. Type-C data cable; 2.power adapter; 3.short circuit card; 4.red and black rubber plug; 5.large capacity lithium battery
Warranty:
1 Year
To measure the parameters of the component such as inductance, capacitance, resistance and so on
